Programming Concepts

Variables & Constants

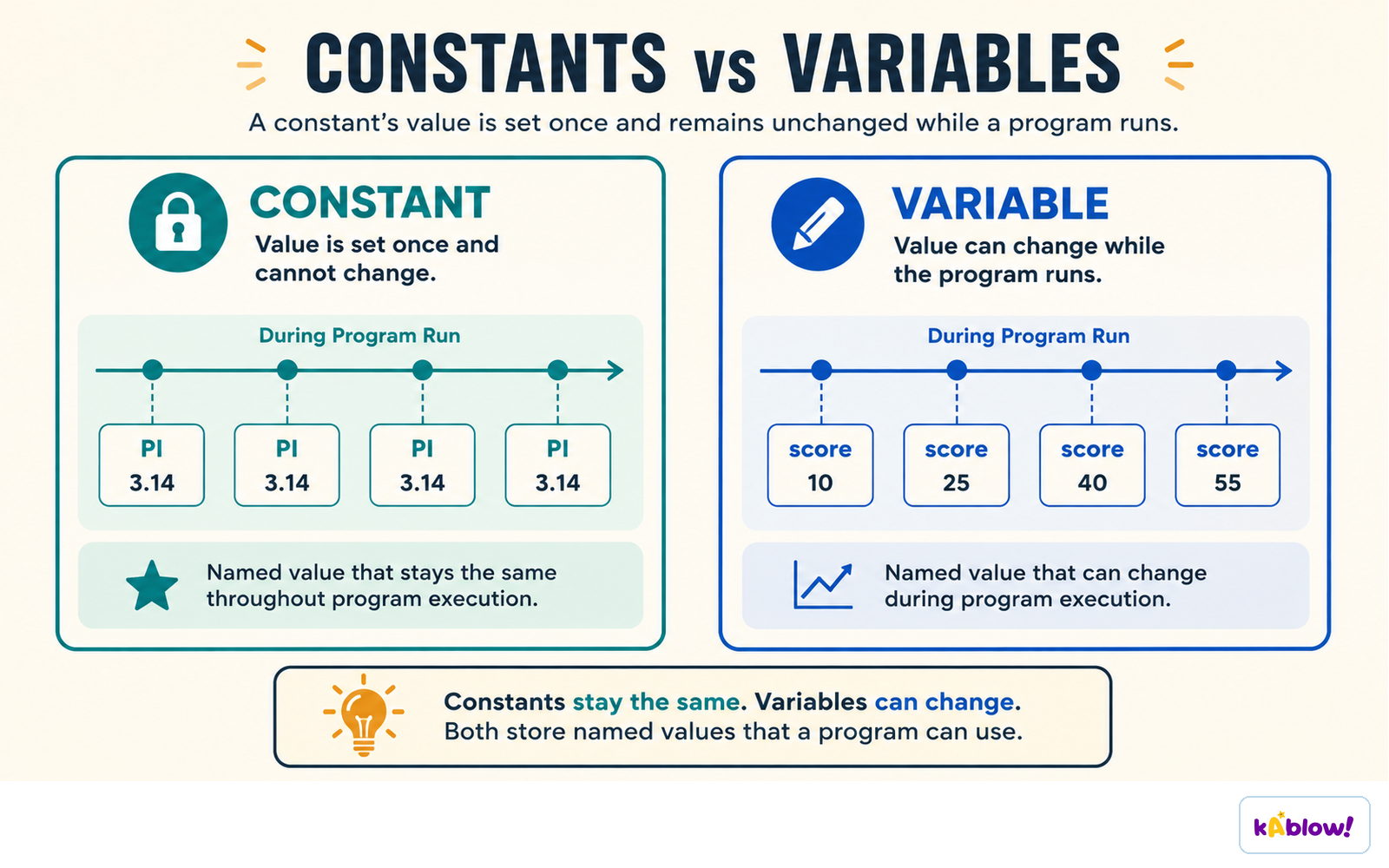

• A **variable** is an identifier that can change during program execution; declared with `DECLARE <id> : <datatype>` in pseudocode.
• Identifiers should use PascalCase, contain only letters/digits, and start with a capital letter.
• A **constant** is an identifier set once; named in UPPERCASE to improve readability and maintainability.
• Constants are declared with `CONSTANT <id> ← <value>`; changing a constant only requires alteration in one place.

Data Types

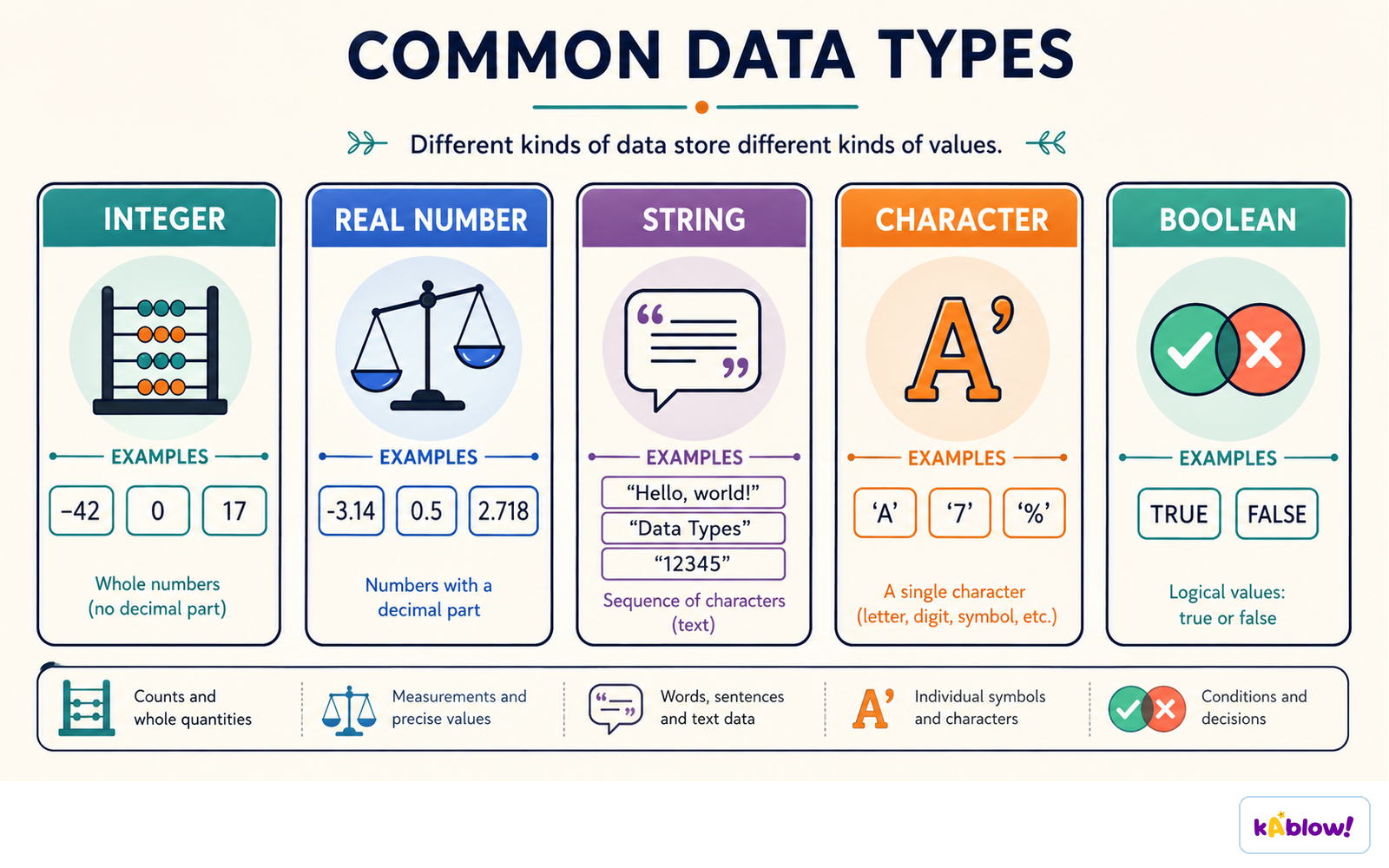

• Basic data types: **Integer** (whole numbers), **Real** (decimal), **Character** (single char), **String** (sequence of chars), **Boolean** (True/False).
• Choosing the correct data type ensures accuracy and efficiency; **casting** converts between types.
• Pseudocode examples: `DECLARE Age : INTEGER`, `DECLARE Price : REAL`, `DECLARE GameOver : BOOLEAN`.

Input & Output

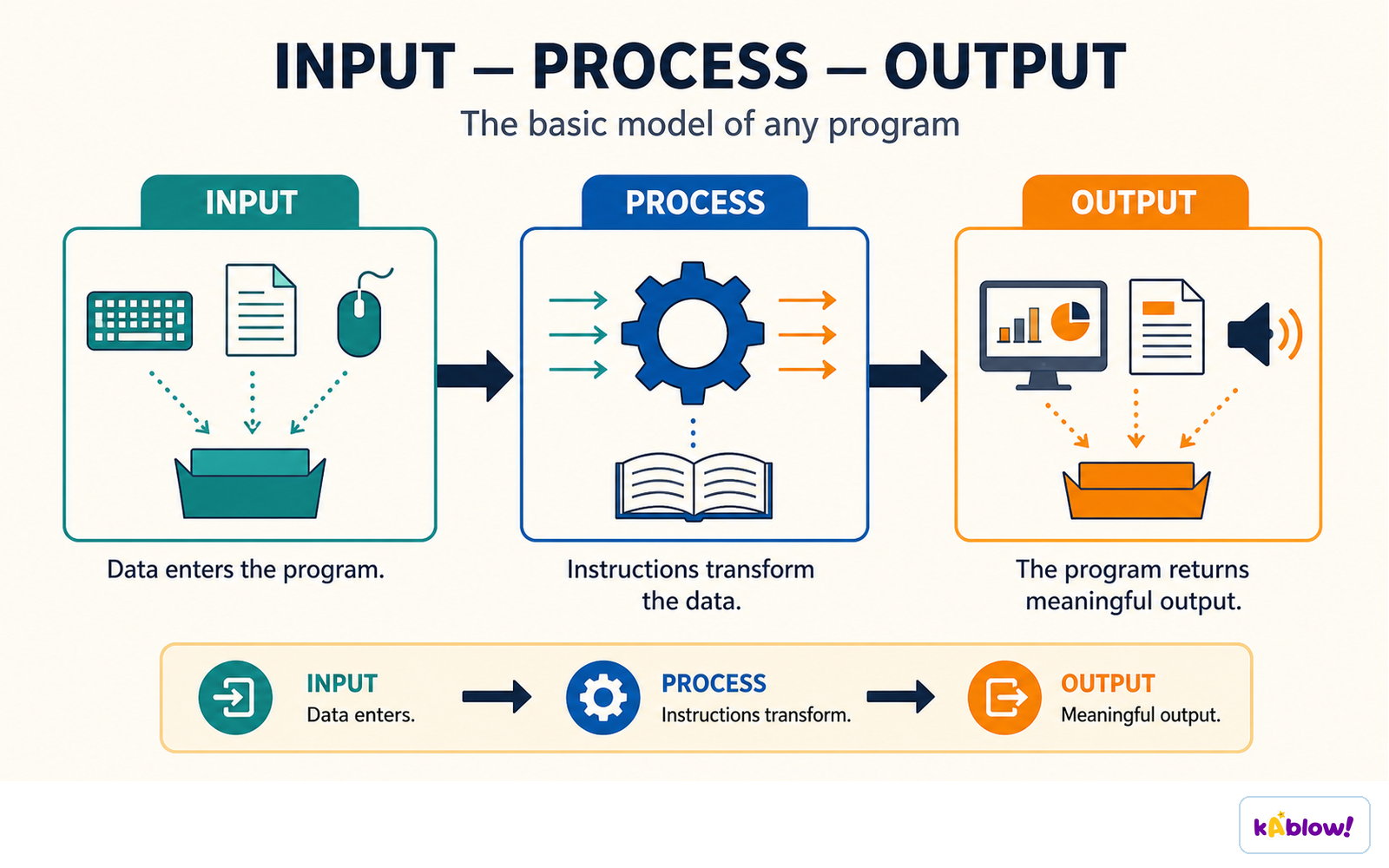

• **Input** reads data from an input device (e.g., keyboard) using `INPUT <identifier>` in pseudocode.
• **Output** sends data to an output device (e.g., monitor) using `OUTPUT <identifier(s)>`.
• Without input, programs cannot interact with the outside world; without output, results cannot be seen.

Sequence

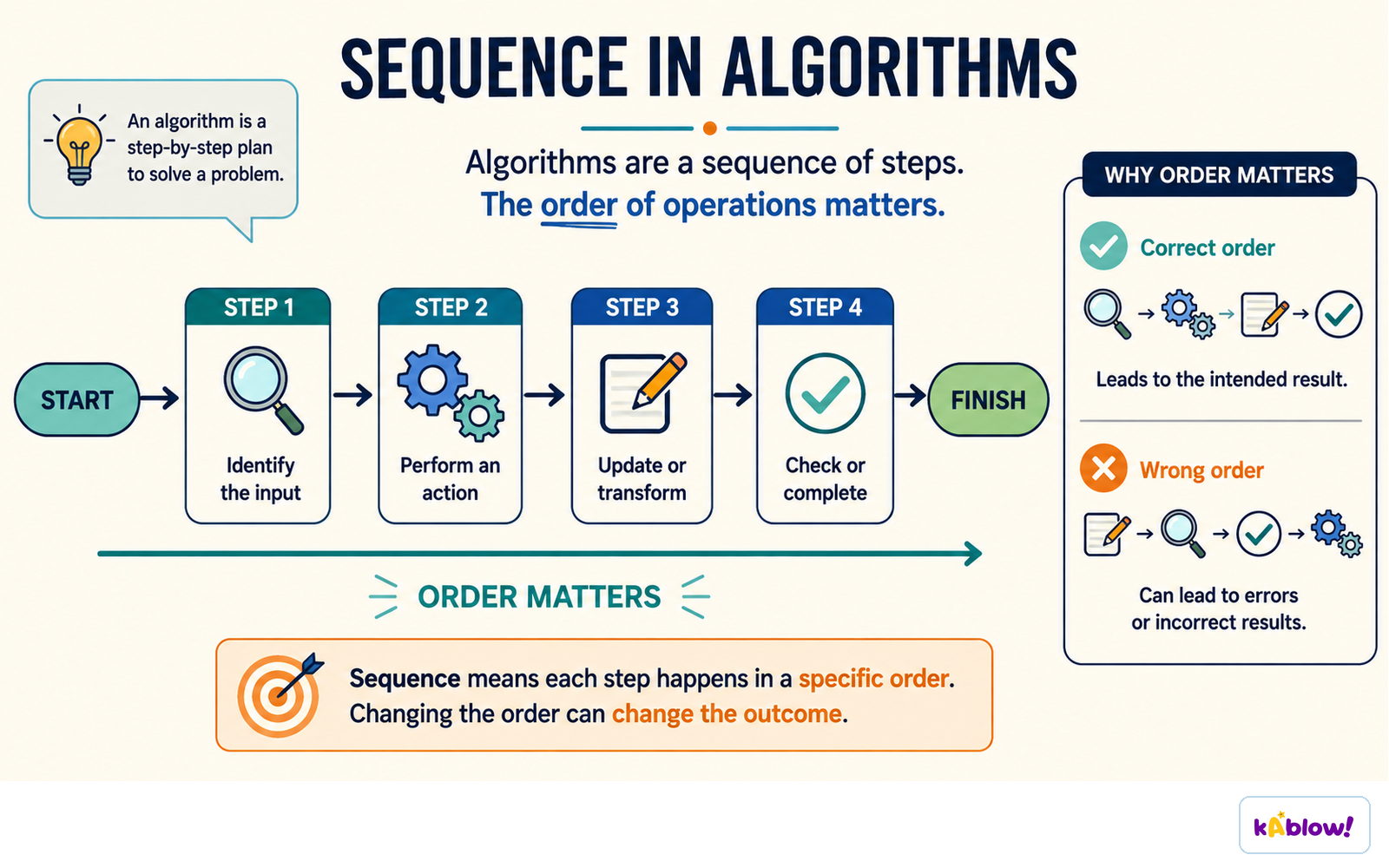

• **Sequence** means lines of code run one at a time in the order they are written.
• Incorrect sequence can cause unexpected behaviour or runtime errors (e.g., returning a variable before it is assigned).

Selection

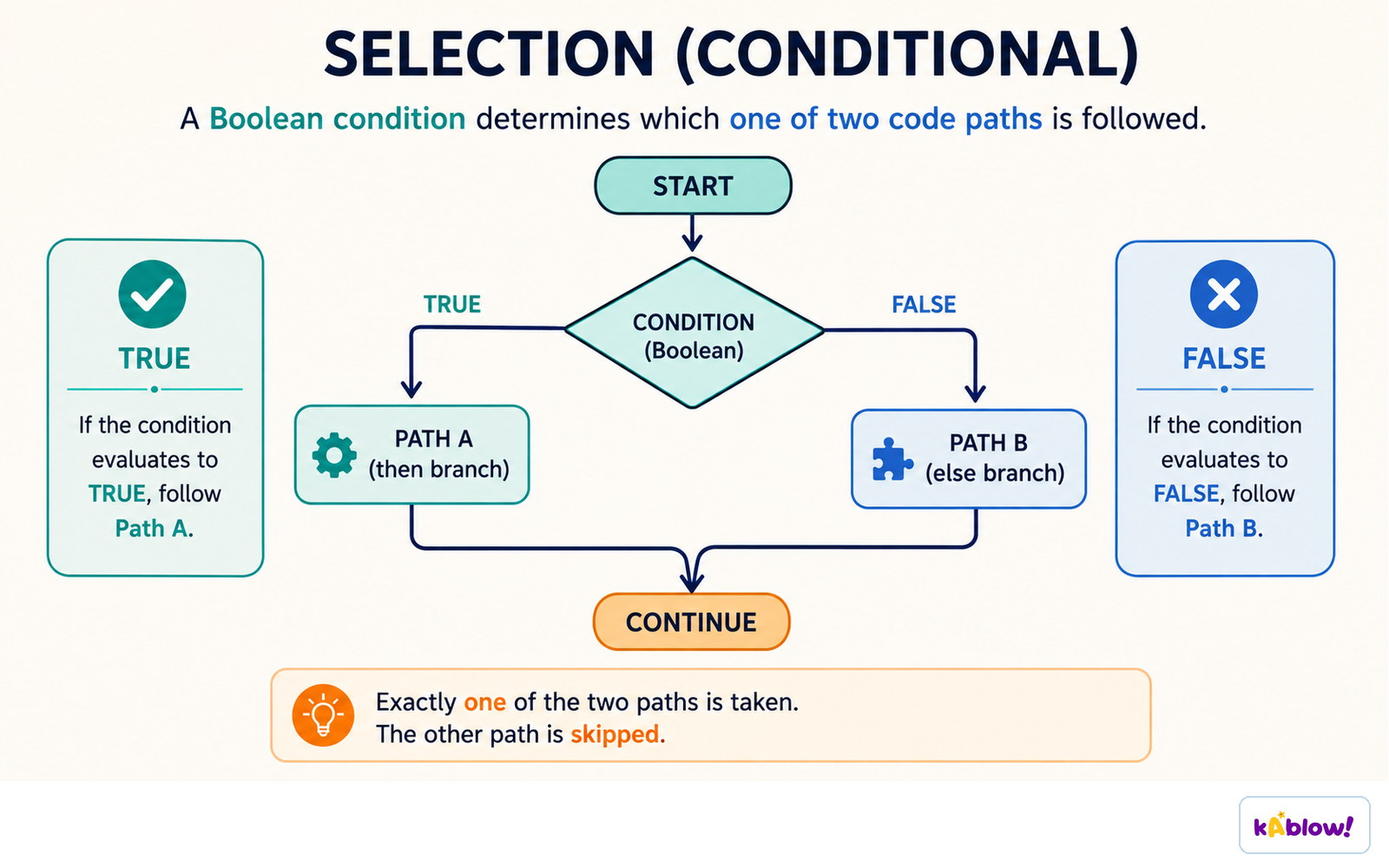

• **Selection** changes program flow based on conditions; uses `IF...THEN...ELSE` or `CASE` statements.
• `IF` statements: `IF <condition> THEN <statements> ELSE <statements> ENDIF`.
• **Nested selection** places one IF inside another; **CASE** compares multiple values of the same variable.
• Boolean operators `AND`, `OR`, `NOT` combine conditions; `AND` true if both true, `OR` true if at least one true, `NOT` inverts.

Iteration

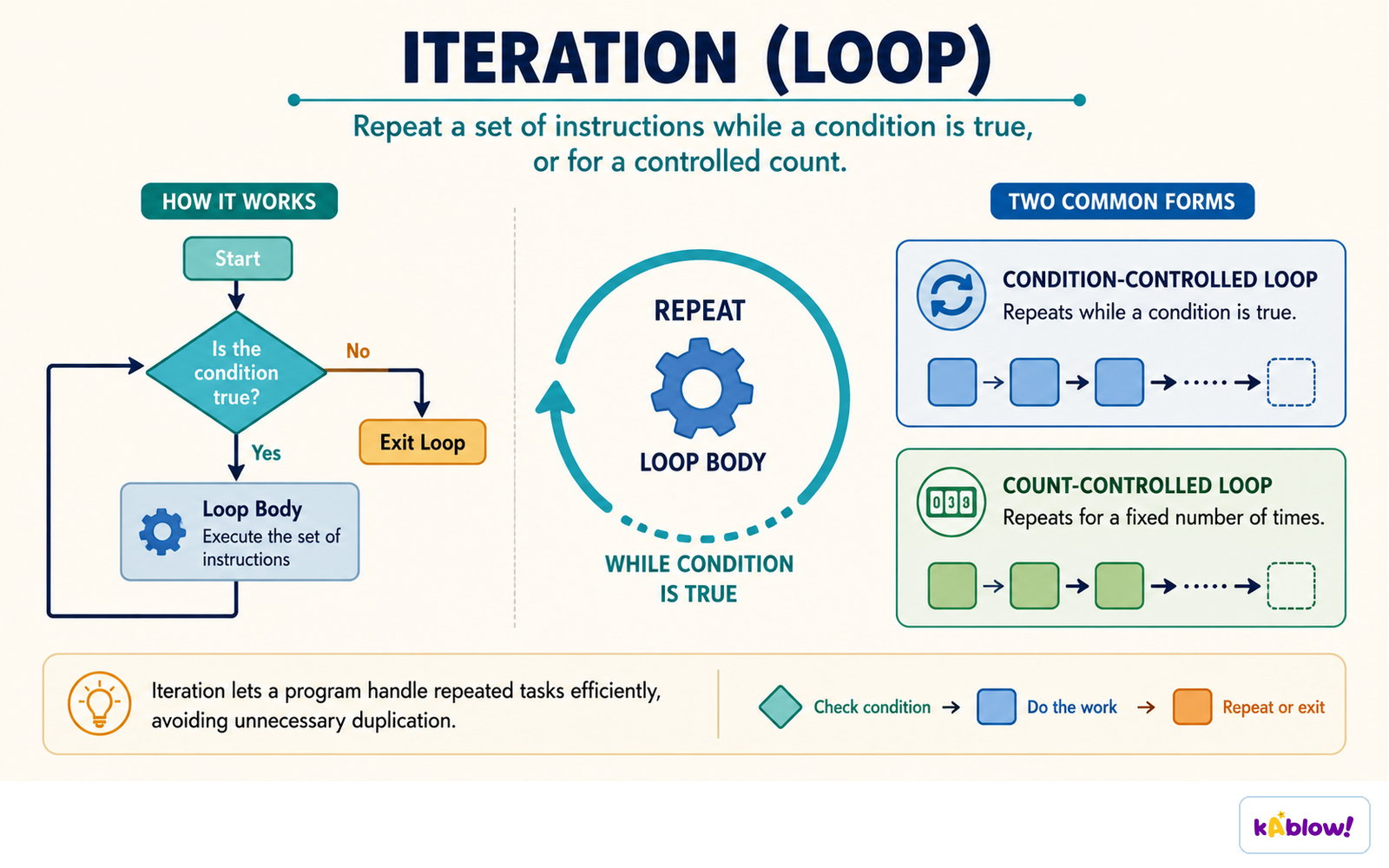

• **Count-controlled loops** repeat a fixed number of times using `FOR <id> ← <start> TO <end> [STEP <inc>]`.
• **Condition-controlled loops** repeat until a condition is met: `WHILE` (pre-condition) or `REPEAT...UNTIL` (post-condition).
• **Nested iteration** is a loop inside another loop, e.g., a FOR inside another FOR.

Totalling & Counting

• **Totalling** adds up values in a loop: initialise total to 0, then update inside loop.
• **Counting** tracks occurrences: initialise count to 0, increment when condition met.
• Both are commonly used with loops to accumulate results.

String Handling

• **Case conversion**: `UCASE`/`LCASE` (pseudocode) or `.upper()`/`.lower()` (Python).
• **Length**: `LENGTH(string)` (pseudocode) or `len(string)` (Python).
• **Substring**: `SUBSTRING(string, start, length)` in pseudocode (start at 1); Python uses slicing `string[start:end]` (start at 0).

Arithmetic, Logical & Boolean Operators

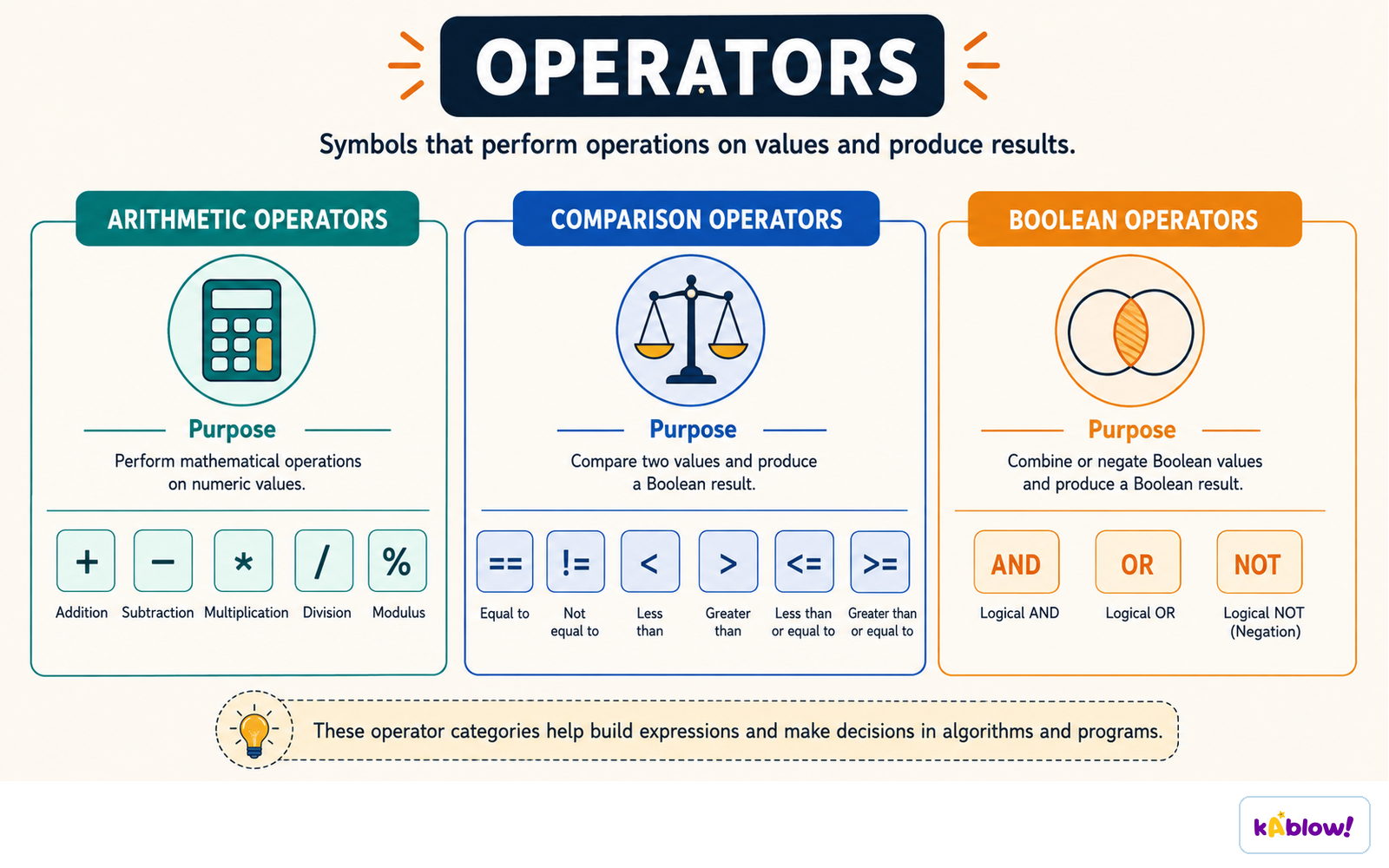

• **Arithmetic operators**: `+`, `-`, `×`, `/`, `MOD` (remainder), `DIV` (quotient), `^` (exponent).
• **Logical operators** compare values: `==`, `<>`, `<`, `≤`, `>`, `≥`.
• **Boolean operators**: `AND`, `OR`, `NOT` used to combine conditions.

Procedures & Functions

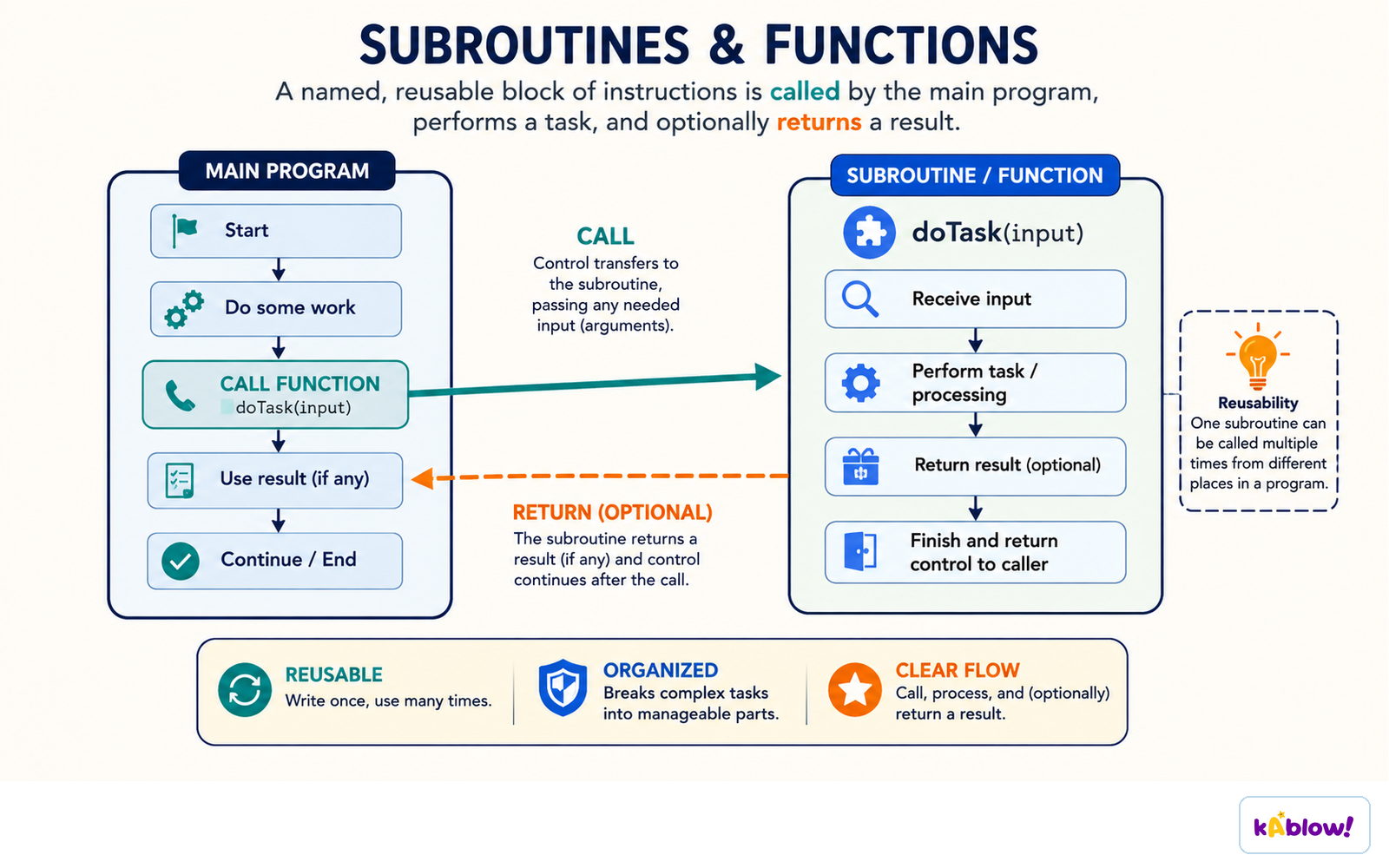

• **Procedures** do not return a value; defined with `PROCEDURE ... ENDPROCEDURE` and called with `CALL`.
• **Functions** return a value; defined with `FUNCTION ... RETURNS <type> ... ENDFUNCTION` and called in expressions.
• Parameters pass data into sub-programs; multiple parameters allowed.
• Sub-programs improve readability, maintainability, and avoid code duplication.

Local & Global Variables

• **Local variables** declared inside a sub-program; only accessible there; destroyed when the sub-program ends.
• **Global variables** declared at the outermost level; accessible from anywhere in the program.
• Use local variables to avoid unintended side-effects; global variables can be modified by any part of the program.

Library Routines

• **Library routines** are pre-written, reusable code (e.g., `RANDOM`, `ROUND`) that save time and are already tested.
• `RANDOM` generates random numbers; in pseudocode `RANDOM(lower, upper)`; in Python `import random; random.randint(a,b)`.
• `ROUND` rounds a number to a specified number of decimal places: `ROUND(value, places)`.

Maintaining Programs

• Use **layout**, **indentation**, **comments**, **meaningful variable names**, **white space**, and **sub-programs** to make code easy to maintain.
• Consistent use of these techniques improves readability and reduces errors when modifying code.
