Electromagnetism Basics

A **current** flowing through a wire creates a **magnetic field** around it – this is an **electromagnet**.
The magnetic field is **strongest near the wire** and gets **weaker further away**.
If the current stops, the magnetic field **disappears**.
The field lines are **concentric circles** around the wire, closer together near the wire.

Right Hand Rule

The **right hand rule** gives the direction of the magnetic field: point your **thumb** along the **current** (I), and your **fingers curl** in the direction of the **magnetic field** (B).
Alternatively, **plotting compasses** can show the field direction around a current-carrying wire.

Solenoids

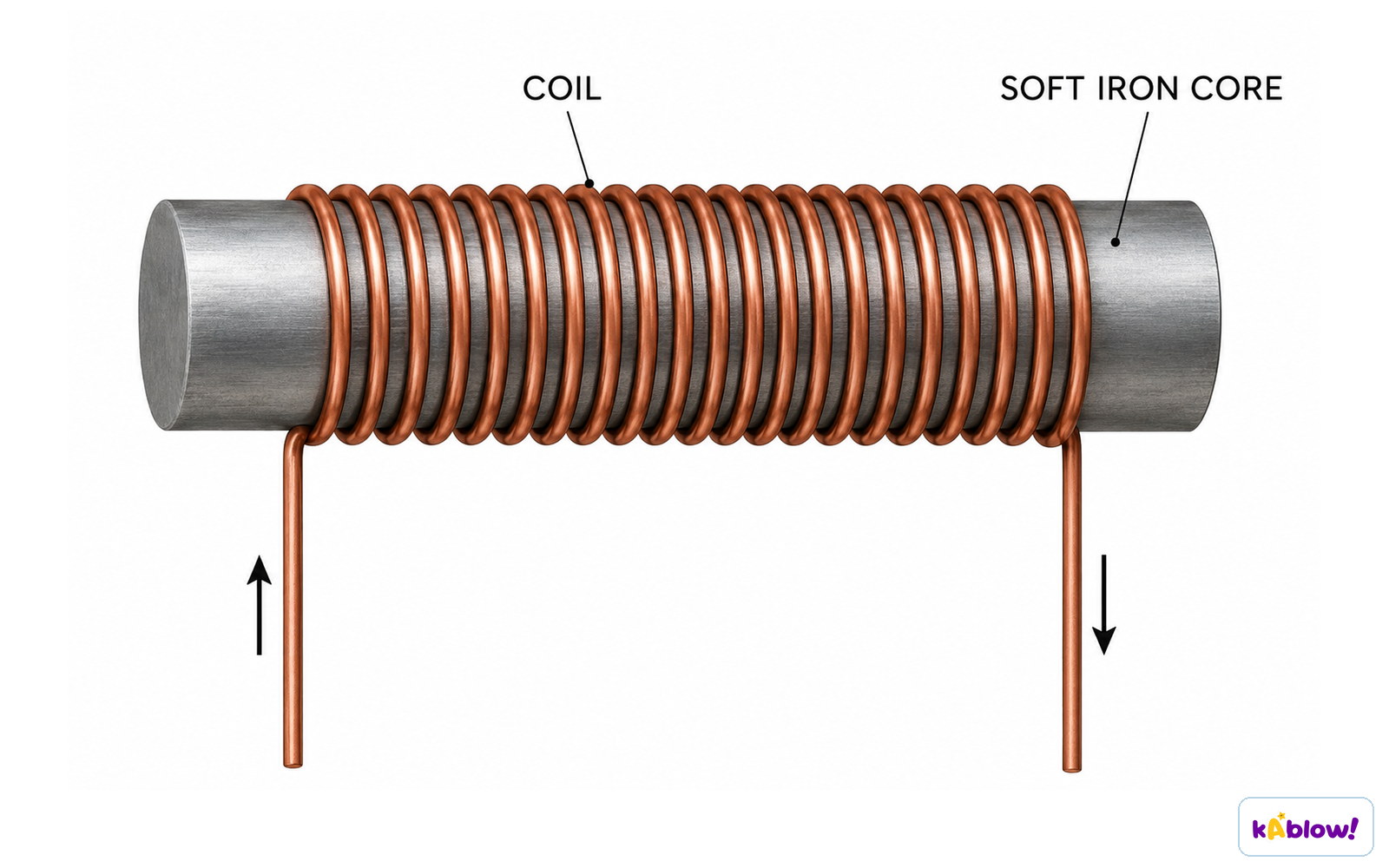

A **solenoid** is a **coil of wire** that produces a magnetic field like a **bar magnet**.
The magnetic field is **strongest inside the solenoid**.
Three ways to increase the field strength: **increase number of turns**, **increase current**, **add an iron core**.

Soft vs Hard Magnetic Materials

A **soft magnetic material** (e.g., **iron**) is **easily magnetised and demagnetised** – ideal for electromagnets that switch on/off.
A **hard magnetic material** is **difficult to magnetise and demagnetise** and would **retain magnetism** – not suitable for a solenoid core.

Simple circuit showing current flow (I) through a wire, creating a magnetic field around it.

Slides

Step through every slide for this topic — plus flashcards and revision notes — with a free account.

Practice questions

Free preview — 8 of 40 questions. Sign up to see them all.

1.What must flow through a wire to create an electromagnet?
Easy
- AElectric current
- BVoltage
- CResistance
- DMagnetic field
2.What is a solenoid?
Easy
- AA coil of wire
- BA straight wire
- CA bar magnet
- DAn iron core
3.Where is the magnetic field produced by a solenoid strongest?
Medium
- AInside the solenoid
- BOutside the solenoid
- CAt the ends of the solenoid
- DFar away from the solenoid
4.Which of the following is NOT a way to increase the strength of the magnetic field produced by a solenoid?
Medium
- AIncrease the voltage
- BIncrease the number of turns in the coil
- CIncrease the current
- DAdd an iron core
5.What is the difference between a soft magnetic material and a hard magnetic material?
Medium
- ASoft magnetic materials can be easily magnetised and demagnetised, while hard magnetic materials are difficult to magnetise and demagnetise
- BSoft magnetic materials are difficult to magnetise and demagnetise, while hard magnetic materials are easy
- CSoft magnetic materials are always iron, while hard magnetic materials are always steel
- DSoft magnetic materials retain magnetism, while hard magnetic materials do not
6.Which of the following is an example of a soft magnetic material?
Easy
- AIron
- BSteel
- CCobalt
- DNickel
7.Why should hard magnetic materials not be placed in a solenoid core?
Medium
- AThey would retain some magnetism when the current is switched off
- BThey are too heavy
- CThey do not conduct electricity
- DThey would increase the resistance
8.What happens to the strength of the magnetic field as you go further from a current-carrying wire?
Easy
- AIt gets weaker
- BIt gets stronger
- CIt stays the same
- DIt becomes zero immediately

More questions

9.What is the shape of the magnetic field around a current-carrying wire?
Medium
- AConcentric circles
- BStraight lines
- CElliptical loops
- DRandom patterns
10.In the right-hand rule, what does the direction of the thumb represent?
Easy
- ADirection of current
- BDirection of magnetic field
- CDirection of force
- DDirection of motion
11.In the right-hand rule, what does the direction of the fingers represent?
Easy
- ADirection of magnetic field
- BDirection of current
- CDirection of force
- DDirection of motion
12.Other than using the right-hand rule, how can the direction of the magnetic field around a current-carrying wire be shown?
Medium
- AUsing plotting compasses
- BUsing a voltmeter
- CUsing an ammeter
- DUsing a bar magnet
13.A student has a solenoid with 20 turns and a current of 2 A. She wants to double the strength of the magnetic field inside the solenoid. Which of the following changes alone would achieve this?
Medium
- AIncrease the number of turns to 40
- BIncrease the current to 4 A
- CAdd an iron core
- DIncrease the number of turns to 40 and the current to 4 A
14.A solenoid has 50 turns and carries a current of 3 A. The magnetic field strength inside is measured as 0.02 T. If the number of turns is increased to 150 and the current is reduced to 1 A, what is the new magnetic field strength?
Hard
- A0.02 T
- B0.04 T
- C0.06 T
- D0.01 T
15.The diagram shows a current-carrying wire with current flowing upward. Using the right-hand rule, in which direction does the magnetic field point at a point to the left of the wire?
Medium
- AInto the page
- BOut of the page
- CUpward
- DDownward
16.A student places a plotting compass near a current-carrying wire. The compass needle points in a circle around the wire. What does this demonstrate?
Easy
- AThe magnetic field is in concentric circles
- BThe magnetic field is uniform
- CThe magnetic field is strongest at the centre
- DThe magnetic field is radial
17.A student wants to create an electromagnet that can be turned on and off easily. Which core material should she use?
Hard
- AIron
- BSteel
- CCopper
- DAluminium
18.The magnetic field strength around a current-carrying wire is measured at distances of 1 cm, 2 cm, and 3 cm from the wire. Which graph best shows how the field strength varies with distance?
Medium
- AA straight line sloping downward
- BA curve that decreases rapidly and then levels off
- CA straight line sloping upward
- DA horizontal line
19.What happens to the magnetic field around a current-carrying wire when the current is switched off?
Easy
- AThe field remains but becomes weaker
- BThe field disappears immediately
- CThe field reverses direction
- DThe field becomes uniform
20.A solenoid is connected to a battery and a switch. When the switch is closed, the solenoid attracts paper clips. Which change would allow the solenoid to attract more paper clips?
Medium
- AUsing a longer wire
- BIncreasing the number of turns in the coil
- CRemoving the iron core
- DReversing the battery connections
21.A student has two solenoids: Solenoid A has 100 turns and a current of 0.5 A. Solenoid B has 50 turns and a current of 1.0 A. Which solenoid produces the stronger magnetic field?
Hard
- ASolenoid A
- BSolenoid B
- CThey are the same strength
- DIt depends on the core material
22.Which of the following is a soft magnetic material?
Easy
- AIron
- BSteel
- CNickel
- DCobalt
23.A student uses a plotting compass to map the magnetic field around a current-carrying wire. The compass needle points in a circle. What does the spacing of the compass needles indicate?
Medium
- AThe direction of the current
- BThe strength of the magnetic field
- CThe material of the wire
- DThe voltage of the power supply
24.In an experiment, a student measures the magnetic field strength at various distances from a current-carrying wire. The results are shown in the table. Which conclusion is correct?
Hard
- AThe field strength is inversely proportional to distance
- BThe field strength is directly proportional to distance
- CThe field strength is constant
- DThe field strength is proportional to the square of distance
25.A student sets up a solenoid with 20 turns and a current of 2 A. She wants to double the strength of the magnetic field inside the solenoid. Which of the following changes alone would achieve this?
Medium
- AIncrease the number of turns to 40 and keep the current at 2 A.
- BIncrease the current to 4 A and keep the number of turns at 20.
- CAdd an iron core and keep the current at 2 A and turns at 20.
- DIncrease the number of turns to 40 and the current to 4 A.
26.In an experiment, a student measures the magnetic field strength at various distances from a current-carrying wire. The results are shown in the table. Which conclusion is correct? Distance (cm) | Field strength (mT) 1 | 8 2 | 4 3 | 2.7 4 | 2
Medium
- AThe field strength is inversely proportional to the distance.
- BThe field strength is inversely proportional to the square of the distance.
- CThe field strength decreases as distance increases, but not at a constant rate.
- DThe field strength is constant at all distances.
27.A student uses a plotting compass to map the magnetic field around a current-carrying wire. The compass needle points in a circle. What does the spacing of the circles indicate?
Medium
- AThe magnetic field is stronger where the circles are closer together.
- BThe magnetic field is uniform everywhere.
- CThe magnetic field is weaker where the circles are closer together.
- DThe circles are equally spaced, so the field is constant.
28.A student constructs an electromagnet using a solenoid with an iron core. The electromagnet picks up 20 paper clips. Which change would allow the electromagnet to pick up more paper clips?
Hard
- AIncrease the current through the solenoid.
- BRemove the iron core and use a steel core.
- CDecrease the number of turns in the coil.
- DReverse the direction of the current.
29.A student wants to investigate how the number of turns in a solenoid affects the strength of its magnetic field. She uses a power supply, an ammeter, a solenoid with variable turns, and a plotting compass. Which procedure is most appropriate?
Hard
- AKeep current constant, vary the number of turns, and measure the deflection of the compass needle at a fixed distance from the solenoid.
- BVary both current and number of turns simultaneously, and measure the compass deflection.
- CKeep the number of turns constant, vary the current, and measure compass deflection.
- DUse a fixed number of turns and vary the distance of the compass from the solenoid.
30.A solenoid with 200 turns and a current of 3 A produces a magnetic field of 0.06 T inside. If the current is reduced to 1 A and the number of turns is unchanged, what will be the new magnetic field strength?
Medium
- A0.02 T
- B0.06 T
- C0.18 T
- D0.01 T
31.A student uses the right-hand rule to determine the direction of the magnetic field around a current-carrying wire. The current flows from left to right. Which direction do the fingers curl?
Hard
- AThe fingers curl from above the wire to below, then back above (clockwise when viewed from the right).
- BThe fingers curl from below the wire to above, then back below (anticlockwise when viewed from the right).
- CThe fingers point straight ahead.
- DThe fingers curl in the direction of the current.
32.Which of the following statements about the magnetic field around a current-carrying wire is correct?
Medium
- AThe field consists of concentric circles centred on the wire.
- BThe field consists of straight lines parallel to the wire.
- CThe field is uniform and the same strength at all distances.
- DThe field only exists if the wire is coiled.
33.What is formed around a wire when a current flows through it?
Easy
- AAn electric field
- BA magnetic field
- CA gravitational field
- DA sound wave
34.What is a coil of wire called?
Easy
- AA solenoid
- BA resistor
- CA capacitor
- DA transformer
35.A student uses plotting compasses to map the magnetic field around a current-carrying wire. At a point 2 cm from the wire, the compass needle points in a direction tangent to a circle around the wire. What does this indicate about the magnetic field?
Medium
- AThe field lines are straight and parallel to the wire.
- BThe field lines form concentric circles around the wire.
- CThe field lines radiate outward from the wire.
- DThe field lines are perpendicular to the wire.
36.In an experiment, a student measures the magnetic field strength at various distances from a current-carrying wire. The results are shown in the table. Which conclusion is supported by the data?
Medium
- AThe field strength is constant at all distances.
- BThe field strength increases with distance.
- CThe field strength decreases with distance.
- DThe field strength is inversely proportional to the square of the distance.
37.A student wants to investigate how the number of turns in a solenoid affects the strength of its magnetic field. She uses a power supply, an ammeter, a solenoid, and a magnetic field sensor. Which of the following procedures would produce valid results?
Hard
- AVary the number of turns while keeping current constant and measure the field strength.
- BVary the number of turns and the current simultaneously and measure the field strength.
- CKeep the number of turns constant and vary the current, measuring field strength.
- DVary the number of turns and the core material simultaneously.
38.A solenoid with 200 turns and a current of 3 A produces a magnetic field of 0.06 T inside. If the current is reduced to 1 A and the number of turns is unchanged, what is the new magnetic field strength?
Medium
- A0.02 T
- B0.04 T
- C0.06 T
- D0.18 T
39.A student uses the right-hand rule to determine the direction of the magnetic field around a current-carrying wire. The current flows from left to right. Which direction does the magnetic field point at a point above the wire?
Medium
- AInto the page
- BOut of the page
- CTo the left
- DTo the right
40.A student sets up an experiment to investigate how the magnetic field strength around a current-carrying wire varies with distance. She uses a plotting compass at different distances from the wire and records the deflection. Which of the following is the most appropriate way to ensure reliable results?
Medium
- ARepeat the measurements at each distance and calculate an average
- BUse a stronger current for larger distances
- CPlace the compass at the same distance and measure the deflection multiple times without moving it
- DUse different compasses for each distance

Revision notes

## Electromagnetism Revision Notes - **Electromagnet**: A magnetic field forms around any wire carrying an electric current. The field is strongest near the wire and weakens with distance. If the current stops, the magnetic field disappears. - **Field shape**: Concentric circles around the wire, closer together near the wire (stronger field). - **Right-hand rule**: Point thumb in direction of current (I); fingers curl in direction of magnetic field (B). - **Solenoid**: A coil of wire. Its magnetic field pattern is like a bar magnet. The field is strongest **inside** the solenoid. - **Strengthening a solenoid's field**: 1. Increase number of turns in the coil. 2. Increase current. 3. Add an **iron core** (soft magnetic material). - **Soft vs hard magnetic materials**: - **Soft**: Easily magnetised and demagnetised (e.g., iron). Ideal for electromagnets because magnetism can be turned on/off. - **Hard**: Difficult to magnetise and demagnetise; retains magnetism. Not suitable for solenoid cores. - **Plotting compasses** can also show the direction of the magnetic field around a current-carrying wire.

Electromagnet: A magnetic field formed around a wire when an electric current flows through it.
Solenoid: A coil of wire that produces a magnetic field similar to a bar magnet.
Right-hand rule: A method to determine the direction of the magnetic field around a current-carrying wire: point thumb in current direction, fingers curl in field direction.
Soft magnetic material: A material that can be easily magnetised and demagnetised, e.g., iron.
Hard magnetic material: A material that is difficult to magnetise and demagnetise and retains magnetism.

Flashcards

What is an electromagnet?

A magnetic field formed around a wire when a current flows through it.

How can the strength of an electromagnet be increased?

By increasing the current.

Where is the magnetic field strongest around a current-carrying wire?

Nearest to the wire.

What happens to the magnetic field if the current stops flowing?

The magnetic field also stops.

Describe the shape of the magnetic field around a current-carrying wire.

Concentric circles around the wire, closer together near the wire.

What does the right hand rule show?

It shows the direction of the magnetic field around a current-carrying wire.

In the right hand rule, what does the thumb point in the direction of?

The direction of current.

In the right hand rule, what do the fingers point in the direction of?

The direction of the magnetic field.

How else can the direction of a magnetic field around a wire be shown?

Using plotting compasses.

What is a solenoid?

A coil of wire.

What pattern does the magnetic field of a solenoid resemble?

The pattern of a bar magnet.

Where is the magnetic field strongest in a solenoid?

Inside the solenoid.

List three ways to increase the strength of a solenoid's magnetic field.

1. Increase the number of turns in the coil. 2. Increase the current. 3. Add an iron core.

What is a soft magnetic material?

A material that can be easily magnetised and demagnetised.

Give an example of a soft magnetic material.

Iron.

What is a hard magnetic material?

A material that is difficult to magnetise and demagnetise.

Why are hard magnetic materials not used in the core of a solenoid?

They would retain some magnetism, making it hard to turn the electromagnet off.

What happens to the strength of the magnetic field as you go further from a current-carrying wire?

It gets weaker.

State what has to flow through a wire to create an electromagnet.

Current.

Unlock all 40 questions, flashcards & more

Create a free account to see every question, the slides, flashcards and revision notes for this topic.

Past papers

Past-paper practice for this topic is coming soon.

Coming soon
