Lesson notes

Electric Forces

**Electric force** acts between charged objects; like charges **repel**, opposite charges **attract**.

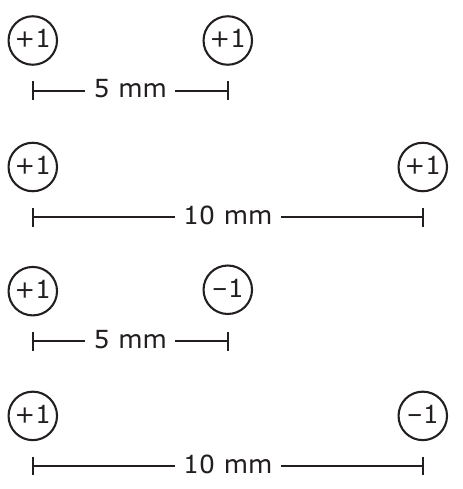

The strength of electric force depends on the **amount of charge** and the **distance** between objects (greater charge → stronger force; greater distance → weaker force).
**Static electricity** is the buildup of electric charge on the surface of objects, often from friction (e.g., rubbing a balloon on hair).
Electric forces hold **atoms** together (attraction between positive nucleus and negative electrons) and form **molecules**.

Magnetic Forces

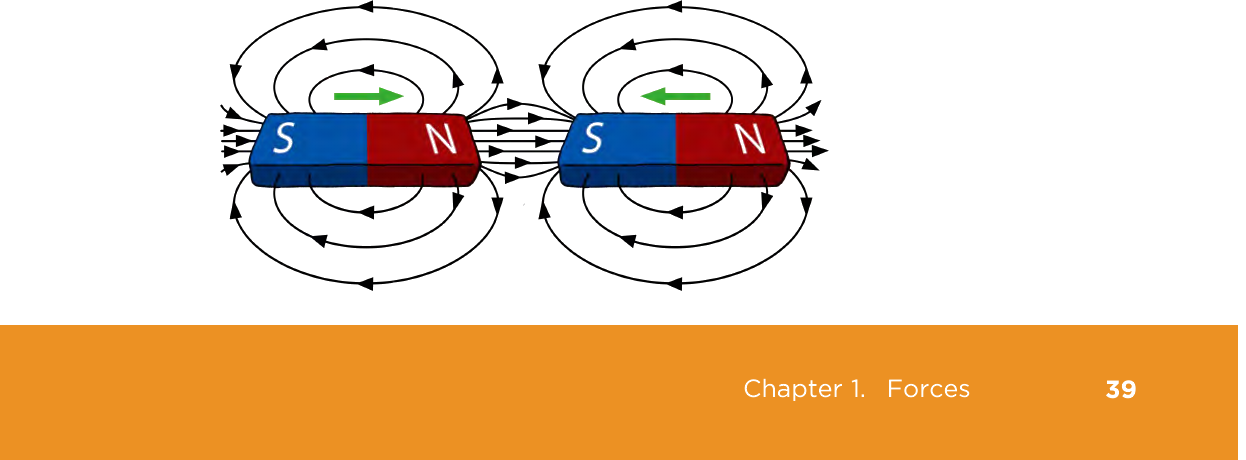

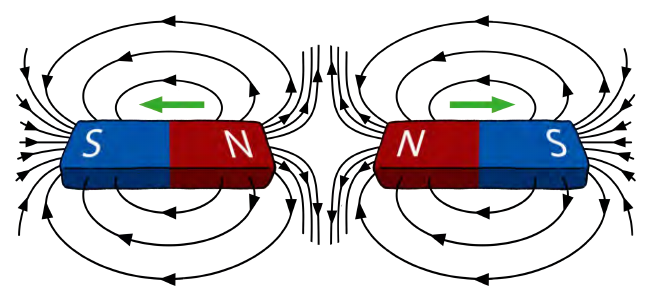

**Magnets** have a **north pole** and a **south pole**; opposite poles attract, like poles repel.
Magnetic force is strongest at the **poles** and decreases with distance.
Some materials (e.g., iron, nickel, cobalt) are **ferromagnetic** and can be magnetized or attracted to magnets.
Earth itself acts like a giant magnet with magnetic poles near the geographic poles.

Electromagnetism

**Electricity** and **magnetism** are two aspects of the same fundamental force: **electromagnetism**.
An **electric current** (moving charges) creates a **magnetic field** around it (e.g., a wire with current deflects a compass needle).
A changing magnetic field can induce an **electric current** in a conductor (electromagnetic induction).

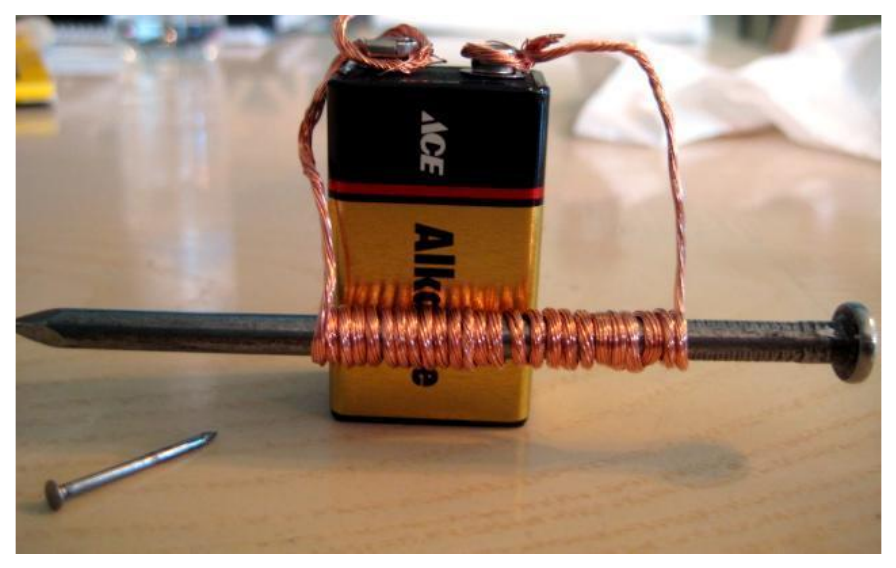

**Electromagnets** are made by wrapping a coil of wire around an iron core and passing current through it; the magnetic field can be turned on/off and strengthened by more coils or more current.

Factors Affecting Force Strength

For both electric and magnetic forces: **force increases** with greater charge/magnet strength and decreases with greater distance.
For electric force: **Coulomb's law** states force ∝ (q₁ × q₂) / r².
For magnetic force: strength depends on **current**, **number of coils**, and **core material** (iron core strengthens electromagnet).
**Distance** has a strong effect: doubling distance reduces force to one-fourth (inverse square law).

Everyday Examples

**Static cling**: clothes stick together due to electric attraction after tumbling in a dryer.
**Compass**: a small magnet aligns with Earth's magnetic field, pointing north.
**Electric motors** use electromagnets to convert electrical energy into motion.
**MRI machines** use strong magnetic fields to image inside the body.

A hydrogen atom: the electric force between the positive proton and negative electron holds the atom together.

A simple series circuit: current flows from the cell through the switch, lamp, and ammeter, creating a magnetic field around the wires.

States of matter: electric forces between particles determine whether a substance is solid, liquid, or gas.

Slides

Step through every slide for this topic — plus flashcards and revision notes — with a free account.

Practice questions

Free preview — 8 of 40 questions. Sign up to see them all.

1.Which of the following describes an electromagnetic force?
Easy
- AA force that acts only between objects that are touching
- BA force that acts between objects with electric charge
- CA force that is weaker than gravity
- DA force that only acts on magnets
2.What is the main reason that atoms are held together?
Easy
- AGravitational attraction between protons and neutrons
- BElectrostatic attraction between the nucleus and electrons
- CMagnetic attraction between electrons
- DStrong nuclear force between electrons
3.Two magnets are placed near each other. Which statement is correct?
Medium
- AOpposite poles repel each other
- BLike poles attract each other
- COpposite poles attract each other
- DMagnets only attract iron, not each other
4.What happens when you bring a charged balloon close to a neutral wall?
Medium
- AThe balloon is repelled by the wall because both have the same charge
- BThe balloon sticks to the wall due to electrostatic attraction
- CNothing happens because the wall is neutral
- DThe balloon discharges and falls
5.If you double the distance between two charged objects, the electric force between them becomes:
Medium
- Atwice as strong
- Bhalf as strong
- Cfour times as strong
- Done quarter as strong
6.Which of the following can produce a magnetic field?
Hard
- AA stationary electric charge
- BA moving electric charge
- CA neutral atom
- DA permanent magnet only
7.What type of force is responsible for static electricity?
Easy
- AGravitational force
- BMagnetic force
- CElectrostatic force
- DNuclear force
8.Which of the following materials would be attracted to a magnet?
Medium
- AAluminum can
- BPlastic ruler
- CIron nail
- DCopper wire

Revision notes

## Electric and Magnetic Forces ### Key Concepts - **Electromagnetic force**: One of the four fundamental forces, responsible for interactions between charged particles. It holds atoms together and causes chemical bonds. - **Electric forces**: Occur between charged objects. Like charges repel, opposite charges attract. Strength depends on amount of charge and distance. - **Magnetic forces**: Occur between magnets or moving charges. Like poles repel, opposite poles attract. Strength depends on magnet strength and distance. - **Static electricity**: Buildup of electric charge on an object. Can cause attraction or repulsion without contact. - **Electromagnetism**: Electricity and magnetism are related. A moving electric charge creates a magnetic field; a changing magnetic field can induce electric current. ### Factors Affecting Force Strength - **Amount of charge**: More charge → stronger electric force. - **Distance**: Closer objects experience stronger forces (both electric and magnetic). - **Magnet strength**: Stronger magnets produce stronger magnetic forces. - **Material**: Some materials (e.g., iron) are more affected by magnets. ### Attraction and Repulsion - **Electric**: Like charges repel, opposite charges attract. - **Magnetic**: Like poles (N-N or S-S) repel, opposite poles (N-S) attract. ### Real-World Examples - **Static electricity**: Balloon sticking to wall after rubbing. - **Magnets**: Compass needle aligning with Earth's magnetic field. - **Electromagnets**: Used in junkyards to lift scrap metal. ### Important Notes - Electromagnetic force has unlimited range but weakens with distance. - All forces (friction, contact) are ultimately due to electromagnetic interactions between atoms. - Electromagnetic waves (light, radio) are oscillations of electric and magnetic fields.

Electromagnetic force: A fundamental force that acts between charged particles; responsible for electricity, magnetism, and light.
Electric force: Force between charged objects; can be attractive or repulsive depending on charge types.
Magnetic force: Force between magnets or moving charges; can be attractive or repulsive depending on poles.
Static electricity: An imbalance of electric charge on an object, often caused by friction.
Attraction: Force pulling objects together; occurs between opposite charges or opposite magnetic poles.
Repulsion: Force pushing objects apart; occurs between like charges or like magnetic poles.
Electromagnetic field: A physical field produced by charged objects; combines electric and magnetic fields.

Flashcards

What are the two types of electric charge?

Positive and negative. Like charges repel, opposite charges attract.

How does distance affect the strength of an electric force?

The force gets weaker as distance increases. It follows an inverse square law.

What happens when two magnets have like poles facing each other?

They repel each other. Like poles (N-N or S-S) push apart.

What happens when opposite poles of two magnets are brought together?

They attract each other. Opposite poles (N-S) pull together.

What is static electricity?

An imbalance of electric charge on the surface of an object, often caused by friction.

How can you increase the strength of an electromagnet?

Increase the number of wire coils, increase the electric current, or use a core with higher magnetic permeability (e.g., iron).

What is the relationship between electricity and magnetism?

Moving electric charges (current) create a magnetic field; changing magnetic fields can induce electric current.

What is an electromagnetic force?

A fundamental force that acts between charged particles, responsible for electricity, magnetism, and light.

What are the four fundamental forces of nature?

Gravitational, electromagnetic, strong nuclear, and weak nuclear.

What causes the force you feel when you push a book across a table?

Electromagnetic forces between atoms in your hand and the book, and between the book and the table.

What is an electromagnet?

A magnet created by running electric current through a coil of wire, often wrapped around an iron core.

How does the number of coils affect an electromagnet's strength?

More coils increase the magnetic field strength, making the electromagnet stronger.

What is a magnetic field?

A region around a magnet or current-carrying wire where magnetic forces can be detected.

What is an electric field?

A region around a charged object where electric forces can be exerted on other charges.

What happens to the force between two charges if the distance is doubled?

The force becomes one-fourth as strong (inverse square law).

What is the role of electrons in static electricity?

Electrons can transfer from one object to another, creating a charge imbalance.

What is a permanent magnet?

A material that retains its magnetic properties without an external current, like a bar magnet.

What is the difference between a permanent magnet and an electromagnet?

A permanent magnet always has a magnetic field; an electromagnet only has a field when current flows.

How does a compass work?

The compass needle is a small magnet that aligns with Earth's magnetic field, pointing north.

What is the law of electric charges?

Like charges repel; opposite charges attract.

What is an electric current?

The flow of electric charge, usually electrons, through a conductor.

What is the effect of inserting an iron core into a solenoid?

It greatly increases the magnetic field strength because iron is ferromagnetic.

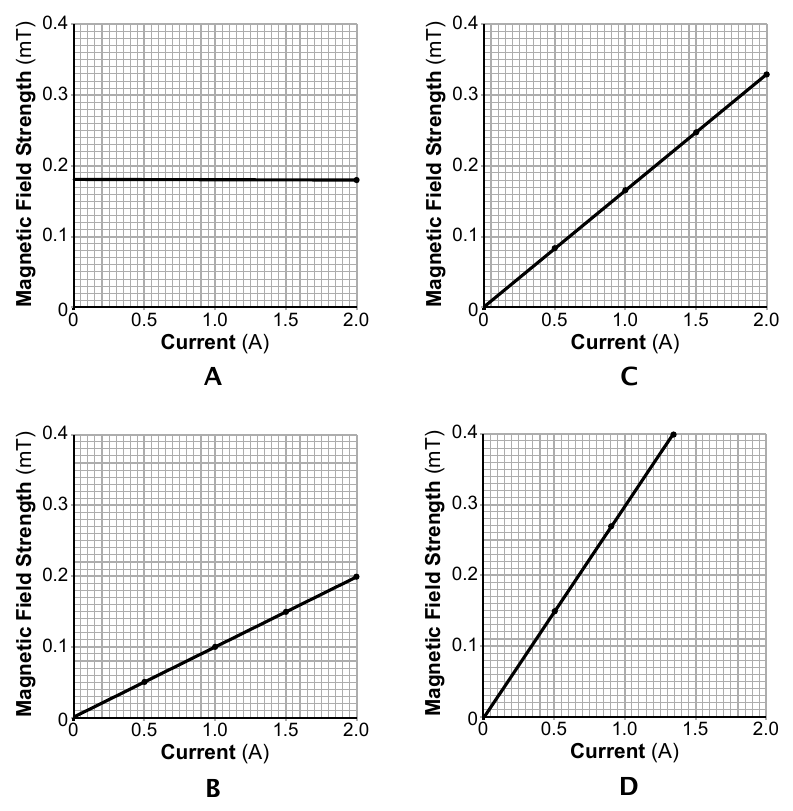

What is the relationship between current and magnetic field strength in an electromagnet?

Increasing the current increases the magnetic field strength.

What is electromagnetic induction?

The process of generating electric current by changing the magnetic field around a conductor.
