Lesson notes

Non-Contact Forces and Fields

Non-contact forces act over a distance without objects touching.
A field is a region in space where an object with certain properties experiences a force.
Common field forces: gravitational, magnetic, and electrostatic forces.
Field forces cause attraction or repulsion rather than pushes or pulls.

The Southern Lights viewed from the International Space Station, and a ferrofluid demonstrating magnetic properties.

Magnetic Force and Magnetic Field

Magnetic force is exerted by magnets on certain materials and other magnets without contact.
A magnet is surrounded by a magnetic field, which can be visualized with iron filings.
Iron filings align along lines of force; concentration near the poles indicates stronger force.
Like poles repel; opposite poles attract.
Magnetic force can act through materials like paper and wood.
Only certain materials are magnetic: iron, nickel, cobalt, and alloys containing them (e.g., steel).

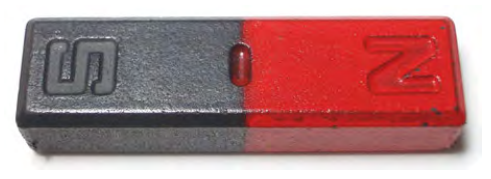

A bar magnet painted to show its north and south poles.

Visualizing Magnetic Fields

Magnetic fields are represented by field lines.
Field lines go from north pole to south pole.
Closer field lines indicate a stronger field.
The field is strongest near the magnet and weakens with distance.
Earth acts like a bar magnet with a magnetic field; compasses use this to point north.

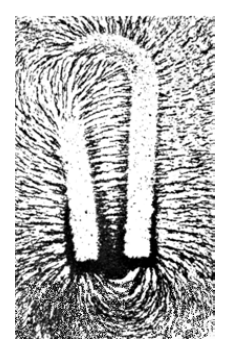

Iron filings tracing the magnetic field around a horseshoe magnet.

Electric Charge and Electric Force

Electric charge is a physical property causing attraction or repulsion between particles.
Protons have positive charge; electrons have negative charge.
Opposite charges attract; like charges repel.
Electric force strength depends on the amount of charge and distance between charges.
Static electricity is a buildup of charge, often from rubbing materials (friction transfers electrons).

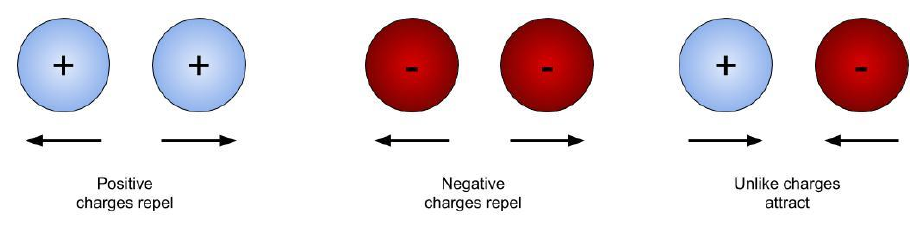

Like charges repel and unlike charges attract.

Electrostatic Forces and Charging

Rubbing objects transfers electrons, leaving one object positively charged and the other negatively charged.
Objects with more electrons than protons are negatively charged; fewer electrons means positively charged.

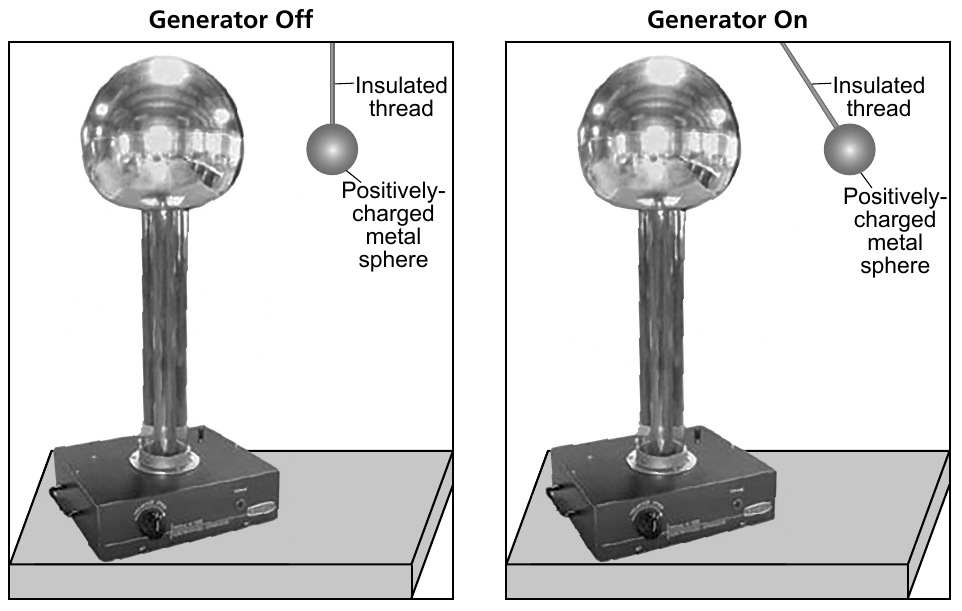

Charged objects exert electrostatic forces on each other without contact.
Like charges repel; unlike charges attract.
The closer charged objects are, the stronger the electrostatic force.

A balloon rubbed on hair picks up electrons, charging the balloon and the hair oppositely.

Gravitational Force and Weight

Gravitational force attracts objects with mass toward each other.
The force is stronger with greater mass and weaker with greater distance.
Weight is the gravitational force on an object, measured in newtons (N).
Mass is the amount of matter, measured in kilograms (kg), and stays constant.
Weight = mass × gravitational acceleration (W = m × g); on Earth, g = 9.8 m/s².

A Jersey cow, illustrating a problem about mass and weight.

Free-Fall and Weightlessness

Free-fall occurs when only gravity acts on an object.
Objects in free-fall feel weightless but still have weight.
Astronauts float because they and their spacecraft are in free-fall together.
Gravitational acceleration varies by planet; on the Moon it's 1.6 m/s², on Jupiter 26 m/s².

Astronauts experiencing weightlessness in free-fall.

Cause and Effect in Field Forces

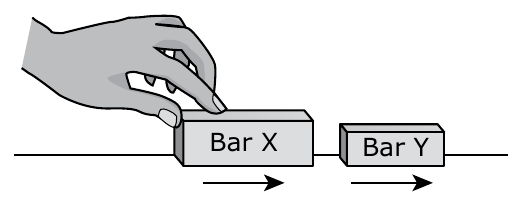

Bringing like poles of magnets together causes repulsion.
Bringing opposite poles together causes attraction.
Bringing like charges together causes repulsion; opposite charges cause attraction.
The cause is the property (charge or pole) and the effect is the force (attraction or repulsion).
Models can show fields and forces even when objects are not touching.

Applications and Phenomena

The floating paperclip trick works because the magnet's magnetic field exerts a force on the paperclip without contact.
A child's hair standing up on a slide is due to static electricity from friction.
Lightning is a massive electrostatic discharge between charged clouds and the ground.
Earth's magnetic field causes phenomena like the Northern and Southern Lights.
Compasses work because of Earth's magnetic field.

Lightning is a huge electrostatic discharge.

Slides

Step through every slide for this topic — plus flashcards and revision notes — with a free account.

Practice questions

Free preview — 8 of 44 questions. Sign up to see them all.

1.Which of the following is a non-contact force?
Easy
- AFriction
- BTension
- CMagnetic force
- DNormal force
2.What is the region around a magnet where it exerts a force called?
Easy
- AMagnetic field
- BGravitational field
- CElectric field
- DForce field
3.Field forces require objects to be in direct contact.
Easy
True or false?
4.Which of the following materials is magnetic?
Easy
- AIron
- BWood
- CPlastic
- DAluminium
5.Like magnetic poles attract each other.
Easy
True or false?
6.As the distance between two magnets increases, the magnetic force between them:
Easy
- AIncreases
- BDecreases
- CStays the same
- DDisappears completely
7.Match each force with its correct type (contact or non-contact).
Easy
- Friction
- Gravitational force
- Tension
- Contact
- Non-contact
- Contact
8.Arrange the steps in order to visualize a magnetic field using iron filings:
Easy
- Place magnet on table
- Put paper over magnet
- Shake iron filings onto paper
- Observe pattern

Revision notes

## Fields and Forces at a Distance - **Fields** are physical quantities that have a value at every point in space and time. They explain how objects exert forces on each other without touching. - **Gravitational fields** cause attraction between masses. The strength of the gravitational field decreases with distance (inverse square law). - **Electric fields** exist around charged objects. They exert forces on other charges without contact. - **Magnetic fields** exist around magnets and moving charges. They exert forces on other magnets or moving charges. - Fields can be **scalar** (e.g., temperature map), **vector** (e.g., wind map with direction), or **tensor** (e.g., strain). - Fields contain energy and momentum, making them real physical entities. - The strength of many fields follows an **inverse square law**: strength ∝ 1/distance². - **Key evidence for fields**: forces act at a distance (e.g., magnet attracting a paperclip, Earth pulling on the Moon). ## Key Terms

Field: A physical quantity that has a value for each point in space and time, used to explain forces at a distance.
Gravitational field: A field that surrounds any mass and exerts a force on other masses. Its strength decreases with distance.
Electric field: A field around a charged object that exerts a force on other charges. Strength follows an inverse square law.
Magnetic field: A field around a magnet or moving charge that exerts a force on other magnets or moving charges.
Inverse square law: The strength of a field is inversely proportional to the square of the distance from the source.
Scalar field: A field that assigns a single number (magnitude) to each point in space, e.g., temperature.
Vector field: A field that assigns both magnitude and direction to each point in space, e.g., wind or gravitational field.

Flashcards

What is a field in physics?

A field is a physical quantity that has a value for each point in space and time, such as a scalar, vector, or tensor field.

Give an example of a scalar field.

A weather map of surface temperatures, where a number is assigned to each point on the map, is an example of a scalar field.

Give an example of a vector field.

A map of surface winds, with arrows showing wind speed and direction at each point, is an example of a vector field.

What is a tensor field?

A tensor field assigns a tensor (like a strain tensor) to each point in space, representing properties such as deformation of matter caused by stress.

How does the strength of most fields change with distance?

The strength of most fields diminishes with distance, often following an inverse-square law, such as gravitational and electrostatic fields.

What is the gravitational field?

The gravitational field is a vector field that gives the total gravitational acceleration a small object would feel at any point in space.

Who first coined the term 'magnetic field'?

Michael Faraday first coined the term 'magnetic field' in 1845.

What did James Clerk Maxwell discover about electromagnetic fields?

Maxwell discovered that electromagnetic waves propagate at a finite speed, meaning forces depend on past positions and velocities of charges.

What is the inverse-square law?

The inverse-square law states that the strength of a field (e.g., gravity or electrostatics) is inversely proportional to the square of the distance from the source.

What is the difference between a classical field and a quantum field?

A classical field is characterized by numbers, while a quantum field is characterized by quantum operators.

What is a field particle?

In quantum field theory, a field particle (e.g., a boson) is an equivalent representation of a field.

How does a field act on a particle?

A field acts on a particle by exerting a force, and the field itself can possess energy and momentum.

What did Richard Feynman say about the reality of fields?

Feynman said that because electromagnetic fields can possess momentum and energy, they are very real, just like particles.

What is the relationship between fields and forces at a distance?

Fields explain how objects exert forces on each other without touching, such as gravitational, electric, and magnetic forces.

What is the gravitational field according to Newton?

Newton's gravitational field is a vector field that gives the gravitational acceleration at each point, simplifying calculations of forces between many bodies.

How did Maxwell initially view the electromagnetic field?

Maxwell initially thought the electromagnetic field was a deformation of an underlying medium called the luminiferous aether.

What resolved the problem of the aether?

Einstein's special theory of relativity in 1905 showed that electromagnetic waves have the same speed for all observers, eliminating the need for a background medium.

What is the electric field?

The electric field is a vector field that describes the electric force per unit charge at each point in space.

What is the magnetic field?

The magnetic field is a vector field that describes the magnetic force on moving charges or magnetic materials.

What does MS-PS2-5 standard cover?

MS-PS2-5 covers that objects exert forces on each other without touching through fields (gravitational, electric, magnetic) and evidence that fields exist.

What is the evidence that a magnetic field exists?

A compass needle aligns with a magnetic field, and iron filings near a magnet show the shape of the field.

What is the evidence that an electric field exists?

A charged object can attract or repel another charged object without touching, and a field can be detected using a test charge.

What is the evidence that a gravitational field exists?

Objects fall toward Earth and planets orbit the Sun without direct contact, indicating a gravitational field.

Can a field be both scalar and vector at different points?

No, a field has a consistent tensor rank; it cannot be scalar in one place and vector in another.
