Thermal energy and heat transfer

Learn it by playing

Answer these questions to earn energy, then fish and explore. No account needed.

For teachers: ready-to-use lesson slides, revision notes, diagrams for Thermal energy and heat transfer (NGSS Middle School Science, Physics) — use them in your lesson, or run the topic as an interactive class activity your students play as a live game.

Lesson notes

What is Thermal Energy?

**Thermal energy** is the total kinetic energy of particles in a substance due to random motion.

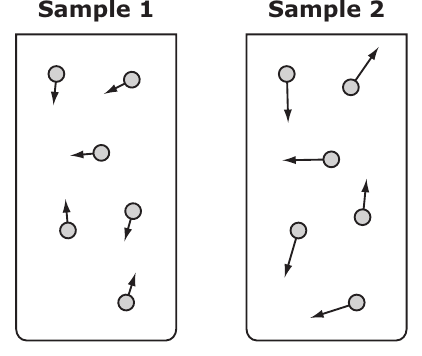

**Temperature** measures the average kinetic energy of particles; higher temperature means faster particle motion.
Heat is the transfer of thermal energy from a hotter object to a cooler one until **thermal equilibrium** is reached.
The SI unit for energy, work, and heat is the **joule (J)**.

Heat Transfer by Conduction

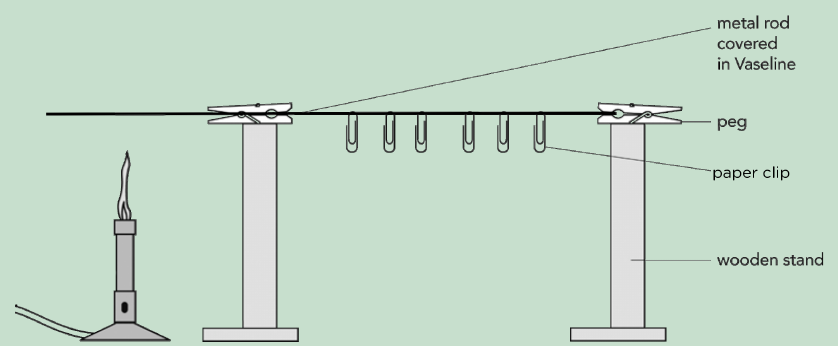

**Conduction** is the transfer of thermal energy through direct contact between particles, without bulk movement of matter.
Occurs mainly in solids; particles vibrate and transfer energy to neighboring particles.

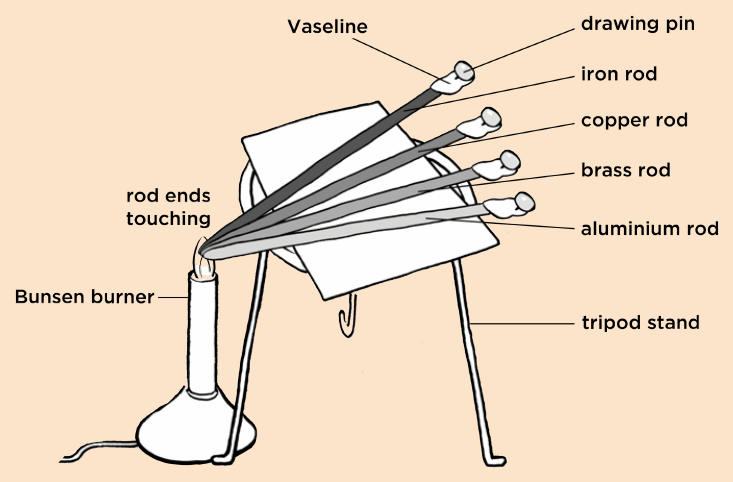

**Thermal conductivity** measures how well a material conducts heat (e.g., metals are good conductors, wood/plastic are insulators).
Fourier's law describes conduction: heat flux is proportional to temperature gradient.

Heat Transfer by Convection

**Convection** is the transfer of thermal energy by the bulk movement of a fluid (liquid or gas).
In **natural convection**, warmer fluid expands, becomes less dense, and rises; cooler fluid sinks, creating a circulation loop.
**Forced convection** uses a pump, fan, or other mechanical means to move the fluid.
Convection also involves some conduction (diffusion) at the molecular level.

Heat Transfer by Radiation

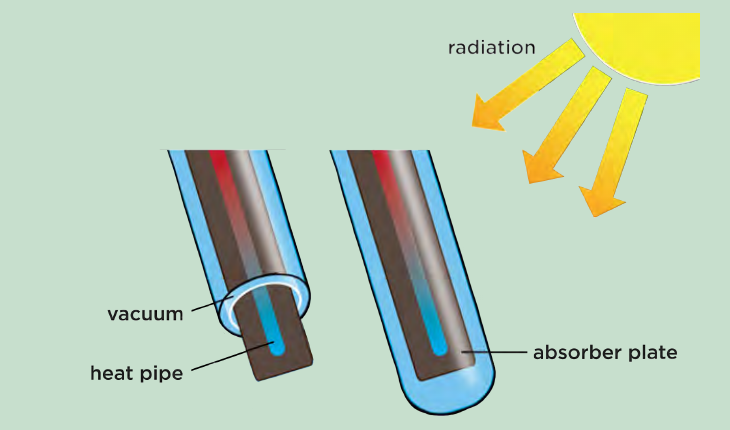

**Radiation** is the transfer of thermal energy via electromagnetic waves (infrared radiation).

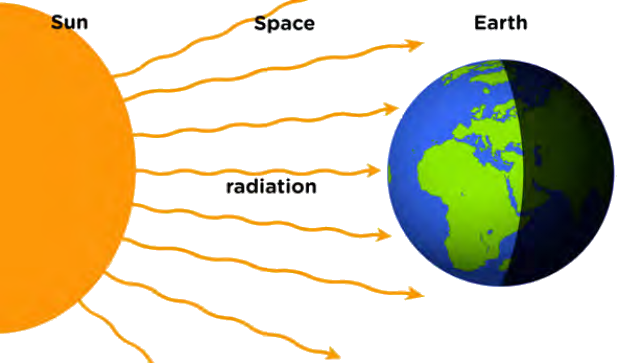

Does not require a medium; can travel through vacuum (e.g., energy from the Sun reaches Earth).
All objects emit and absorb radiation; the rate depends on temperature and surface properties (dark, rough surfaces emit/absorb more).
The Stefan–Boltzmann law relates power radiated to temperature to the fourth power.

Everyday Examples of Heat Transfer

**Conduction**: Touching a hot metal spoon; heat travels from the hot end to your hand.

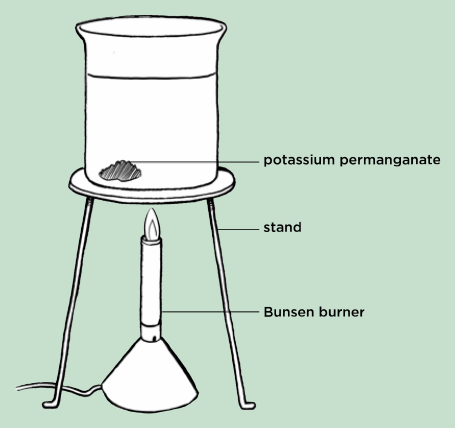

**Convection**: Boiling water – hot water rises, cool water sinks, creating currents.
**Radiation**: Feeling warmth from a campfire without touching it; sunlight warming Earth.

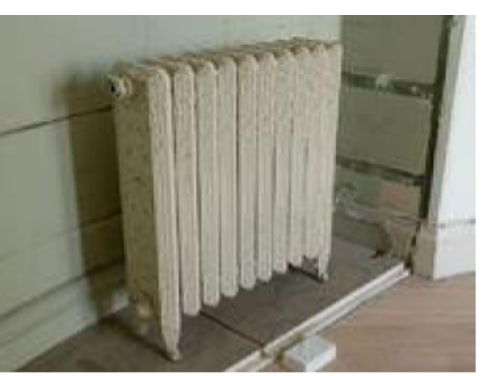

Many situations involve multiple modes, e.g., a radiator heats a room by convection (air currents) and radiation.

Insulation and Energy Conservation

**Insulators** are materials that slow down heat transfer (e.g., fiberglass, foam, air gaps).
Insulation works by trapping air (a poor conductor) and reducing convection and radiation.
In buildings, insulation keeps heat inside during winter and outside during summer, reducing energy use.
Vacuum flasks (thermos) minimize all three modes: vacuum stops conduction/convection, reflective coating reduces radiation.

Key Equations and Concepts

Heat transfer rate depends on temperature difference, material properties, and surface area.
Specific heat capacity (c) is the energy needed to raise 1 kg of a substance by 1°C.
The formula Q = mcΔT relates heat energy (Q) to mass (m), specific heat (c), and temperature change (ΔT).
Phase changes (melting, boiling) involve latent heat – energy transferred without temperature change.

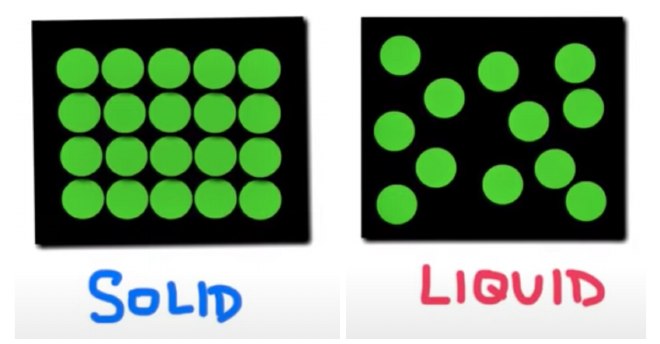

Particle arrangement in solids, liquids, and gases. Solids have tightly packed, vibrating particles; liquids have slightly separated, flowing particles; gases have widely spaced, fast-moving particles.

Refraction of light (analogous to thermal radiation) as it passes from air into glass, bending toward the normal.

Slides

Step through every slide for this topic — plus flashcards and revision notes — with a free account.

Practice questions

Free preview — 8 of 40 questions. Sign up to see them all.

1.What is the definition of thermal conduction?
Easy
- ATransfer of energy through the bulk motion of a fluid
- BTransfer of energy by electromagnetic waves through a vacuum
- CTransfer of energy between objects in physical contact due to a temperature difference
- DTransfer of energy by the movement of a hot object from one place to another
2.Which of the following is an example of heat transfer by convection?
Easy
- AA metal spoon heating up in hot soup
- BThe Sun warming the Earth
- CWarm air rising in a room
- DAn ice cube melting in a glass of water
3.Thermal radiation can travel through which of the following?
Easy
- AOnly solids
- BOnly liquids and gases
- COnly a vacuum
- DA vacuum or any transparent medium
4.Which of the following best describes the direction of spontaneous heat transfer?
Medium
- AFrom a region of lower temperature to higher temperature
- BFrom a region of higher temperature to lower temperature
- CFrom a region of higher thermal conductivity to lower thermal conductivity
- DFrom a region of higher density to lower density
5.Which property of a material determines how well it conducts heat?
Medium
- ASpecific heat capacity
- BThermal conductivity
- CDensity
- DHeat capacity at constant pressure
6.In the context of heat transfer, what is 'heat flux'?
Medium
- AThe total amount of heat in a system
- BThe rate of heat flow per unit area
- CThe temperature difference across a material
- DThe energy required to raise the temperature of a substance by one degree
7.A student claims that 'heat is a fluid that flows from hot to cold.' Which statement best evaluates this claim?
Hard
- AIt is correct because heat is a substance called caloric.
- BIt is incorrect because heat is not a fluid; it is energy transfer due to temperature difference.
- CIt is correct because heat flows like a fluid through materials.
- DIt is incorrect because heat flows from cold to hot.
8.Which of the following correctly describes why a metal spoon feels colder than a wooden spoon at the same temperature?
Hard
- AMetal has a higher thermal conductivity, so it transfers heat away from your hand faster.
- BMetal has a lower specific heat capacity, so it becomes colder than wood.
- CWood is a better conductor of heat than metal.
- DMetal reflects heat better than wood.

Revision notes

## Thermal Energy and Heat Transfer Heat transfer is the exchange of thermal energy between materials due to a temperature difference. It always occurs from a region of higher temperature to a region of lower temperature until thermal equilibrium is reached. ### Three Main Mechanisms - **Conduction**: Transfer of energy through direct contact. Particles (atoms/molecules) vibrate and collide, passing kinetic energy along. Occurs best in solids, especially metals. Example: a metal spoon getting hot in soup. - **Convection**: Transfer of energy by the bulk movement of fluids (liquids or gases). Warmer fluid rises (less dense), cooler fluid sinks (more dense), creating a circulation loop. Example: boiling water, ocean currents. - **Radiation**: Transfer of energy via electromagnetic waves (photons). Does not require a medium; can travel through vacuum. Example: heat from the Sun. ### Key Ideas - Heat flows spontaneously from hot to cold. - The amount of energy transferred depends on the mass, type of material (specific heat capacity), and temperature change. - Insulators (e.g., wood, plastic, air) slow heat transfer; conductors (e.g., metals) speed it up. - Phase changes (melting, boiling, condensation) also transfer thermal energy. ### Important Definitions - **Heat flux (ϕ_q)**: rate of heat transfer per unit area (W/m²). - **Thermal equilibrium**: when two objects in contact reach the same temperature and no net heat flows. - **Specific heat capacity (c_p)**: amount of energy needed to raise 1 kg of a substance by 1°C (J/kg·°C). ### Formula (for advection/convection) ϕ_q = v ρ c_p ΔT where: - ϕ_q = heat flux (W/m²) - v = velocity of fluid (m/s) - ρ = density (kg/m³) - c_p = specific heat capacity (J/kg·K) - ΔT = temperature difference (K or °C) ### Examples - **Conduction**: Touching a hot pan. - **Convection**: Hot air rising from a radiator. - **Radiation**: Feeling warmth from a campfire. ### Study Tips - Remember: Conduction = contact, Convection = fluid flow, Radiation = waves. - Think of real-life examples for each. - Know that insulators have low thermal conductivity.

Heat transfer: The exchange of thermal energy between physical systems due to a temperature difference.
Conduction: Transfer of heat through direct contact between particles, without bulk movement of matter.
Convection: Transfer of heat by the movement of fluids (liquids or gases) due to density differences caused by temperature changes.
Radiation: Transfer of heat via electromagnetic waves (photons) that can travel through a vacuum.
Thermal equilibrium: State when two objects in contact reach the same temperature and no net heat transfer occurs.
Heat flux: Rate of heat transfer per unit area, measured in W/m².
Specific heat capacity: The amount of heat required to raise the temperature of 1 kg of a substance by 1°C (or 1 K).
Insulator: A material that slows heat transfer (e.g., wood, plastic, air).
Conductor: A material that allows heat to flow easily (e.g., metals).

Flashcards

What is thermal energy?

Thermal energy is the total kinetic energy of particles in a substance due to their random motion.

What is heat?

Heat is the transfer of thermal energy from a region of higher temperature to a region of lower temperature.

What are the three main mechanisms of heat transfer?

Conduction, convection, and radiation.

Define conduction.

Conduction is the transfer of thermal energy through direct contact between particles, without bulk motion of the material.

Give an example of conduction.

A metal spoon getting hot when placed in a hot cup of soup.

What is thermal conductivity?

Thermal conductivity is a material's ability to conduct heat; metals have high thermal conductivity, while insulators have low thermal conductivity.

Define convection.

Convection is the transfer of thermal energy by the bulk movement of a fluid (liquid or gas).

What is natural convection?

Natural convection occurs when fluid motion is caused by buoyancy forces due to temperature differences, e.g., hot air rising.

What is forced convection?

Forced convection occurs when fluid is forced to move by an external source like a fan or pump.

Give an example of convection.

Boiling water: hot water rises, cools, and sinks, creating a circular motion.

Define radiation.

Radiation is the transfer of thermal energy through electromagnetic waves, without needing a medium.

Give an example of radiation.

Feeling the warmth of the Sun on your skin.

What is thermal equilibrium?

Thermal equilibrium is when two objects in contact reach the same temperature and no net heat transfer occurs.

In which direction does heat spontaneously flow?

Heat spontaneously flows from a region of higher temperature to a region of lower temperature.

What is an insulator?

An insulator is a material that slows down heat transfer, such as wood, plastic, or air.

How does insulation work?

Insulation traps air or uses materials with low thermal conductivity to reduce conduction, convection, and radiation.

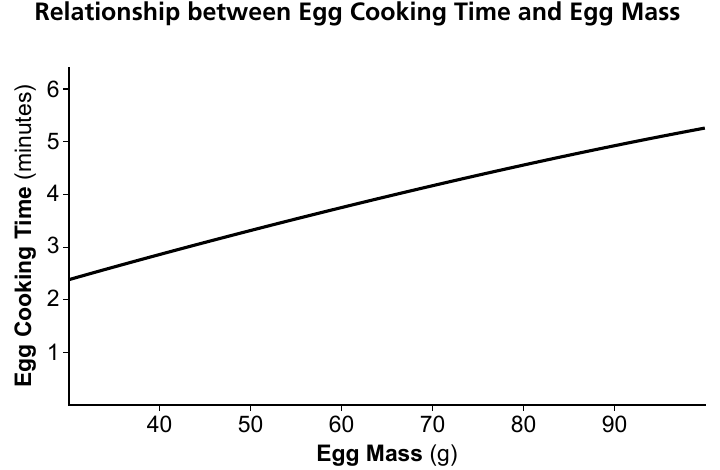

What is the relationship between temperature change and mass?

For the same amount of heat added, a larger mass experiences a smaller temperature increase.

What is specific heat capacity?

Specific heat capacity is the amount of heat needed to raise the temperature of 1 kg of a substance by 1°C.

How does the type of material affect temperature change?

Different materials have different specific heat capacities; materials with higher specific heat require more heat to change temperature.

What is heat flux?

Heat flux is the rate of heat transfer per unit area, measured in watts per square meter (W/m²).

What is the second law of thermodynamics?

Heat cannot spontaneously flow from a colder region to a hotter region; it always flows from hot to cold.

What is advection?

Advection is the transfer of thermal energy by the physical movement of a hot or cold substance from one place to another.

Give an example of advection.

A hot water bottle warming a bed, or an iceberg moving in ocean currents.

What unit is used to measure heat energy?

The joule (J).
