Big idea: magnetic fields and material applications

Key concept: Systems. A magnetic field describes the force effects around a magnet. Field lines point from north to south outside a magnet; induced magnetism depends on the material.
Related concepts: Models and evidence. Use a scientific explanation to make predictions, then test it against observations.
Global context: Scientific and technical innovation. Magnetic materials are used in compasses, motors and electromagnets.

Magnetism

Magnets have two poles: north and south.
Magnetic forces are strongest at the poles.
Like poles repel (N–N or S–S).
Opposite poles attract (N–S).
Attraction/repulsion between magnetic poles is a non-contact force.

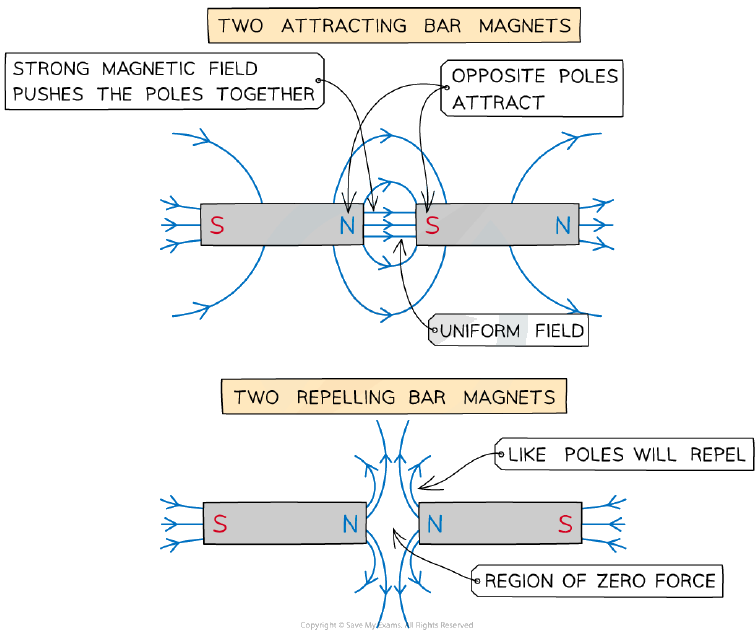

Magnetic field lines showing attraction and repulsion between bar magnets.

Magnetic Materials

Only a few metals are magnetic: iron, cobalt, nickel.
Steel (an alloy containing iron) is also magnetic.
Magnetic materials are attracted to both poles of a magnet.
Non-magnetic materials (e.g., aluminium, plastic) are not affected by a magnet.
A material is a magnet if it repels a known magnet; it is magnetic if it attracts; non-magnetic if neither.

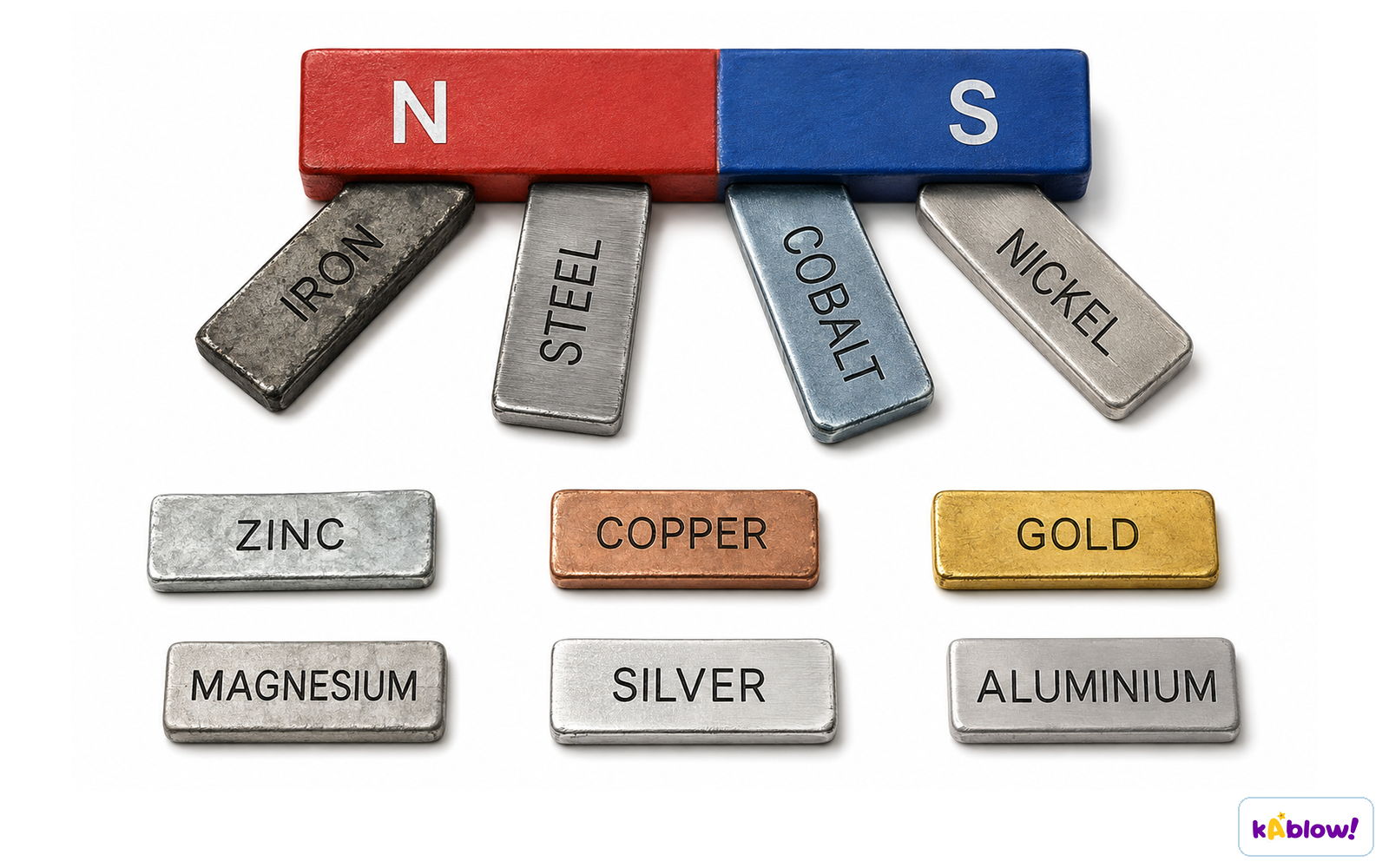

Magnetic materials are attracted to a magnet; non-magnetic materials are not

Permanent Magnets

Made from hard magnetic materials such as steel.
Produces its own magnetic field.
Does not lose its magnetism easily.
Used in: compasses, school lab magnets, toys, fridge magnets.

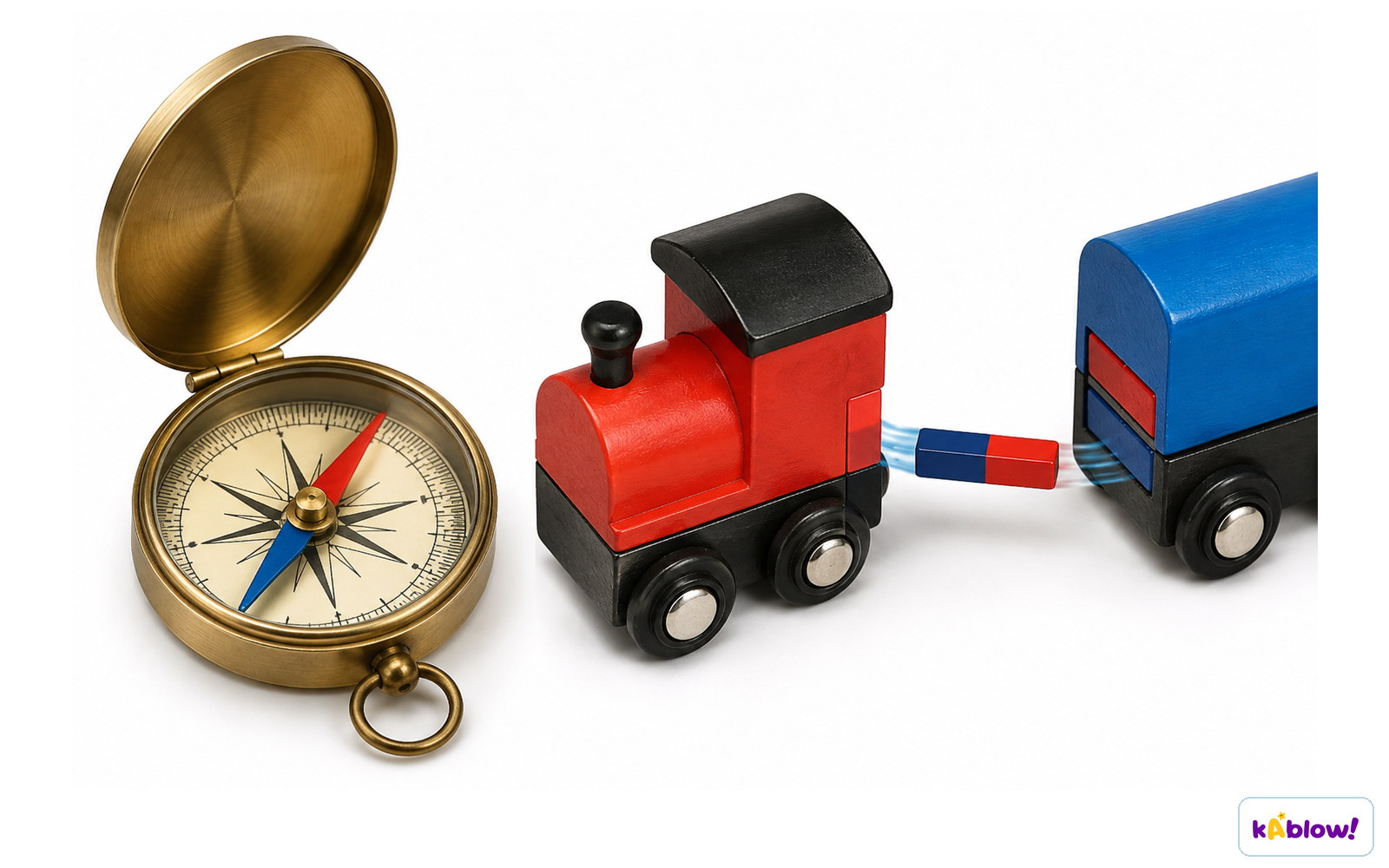

Compasses and toy trains are examples of the use of permanent magnets

Induced (Temporary) Magnets

Made from soft magnetic materials such as soft iron.
Becomes magnetised only when placed in a magnetic field.
The end closest to the magnet gains the opposite pole.
Loses magnetism quickly when removed from the field.
Used in: electromagnets, transformers.

Magnetic Fields

A magnetic field is a region where a magnetic pole experiences a force.
Field lines go from north pole to south pole.
Arrows show direction of force on a north pole.
Field is strongest at the poles (lines are closer together).
Field weakens with distance (lines spread apart).

Plotting Magnetic Fields

Iron filings method: Place paper over magnet, sprinkle filings, tap gently to reveal field pattern.
Plotting compass method: Place compass near magnet, mark needle ends, move compass step by step to trace field lines.
Compass needle points from north to south (north arrow points to south pole of magnet).

Uses of Electromagnets

MRI scanners in hospitals use powerful electromagnets for imaging.
Speakers and earphones use electromagnets to produce sound.
Recycling: Electromagnets separate steel from other scrap.
Mag-Lev trains use repulsion between electromagnets to hover and reduce friction.

Think like a scientist

Map the direction of a bar magnet's field using a small plotting compass at different positions.
Comparison: the compass position around the magnet. Outcome: the compass direction.
Control: keep the magnet position and orientation constant. Explain why this makes the comparison fairer.
Evidence: Use a consistent method, repeated observations where appropriate and a table with labelled quantities and units. Keep unexpected results and investigate their cause.
Safety: Practical activities need teacher supervision and an appropriate risk assessment. Use the provided data or simulation where the investigation specifies it.
Inquiry task: State a testable question, predict the outcome using the science, then explain how your observations would support or challenge the prediction.

Evaluate the science

Magnetic materials are used in compasses, motors and electromagnets.
Field lines are a model rather than physical threads; nearby magnetic materials and fields can distort the observations.
Evaluation task: Link your conclusion to evidence, identify a limitation and suggest a specific improvement. Distinguish a measured result from an explanation of its cause.

Slides

Step through every slide for this topic — plus flashcards and revision notes — with a free account.

Practice questions

Free preview — 8 of 50 questions. Sign up to see them all.

1.Which of the following lists of metals contains only metals that are non-ferrous?
Easy
- AIron, steel, nickel
- BCobalt, copper, steel
- CAluminium, brass, copper
- DIron, tin, aluminium
2.Which metal is suitable for use as a permanent magnet?
Easy
- ASteel
- BSoft iron
- CCopper
- DAluminium
3.Which of the following lists contains only ferrous metals?
Easy
- AAluminium and iron
- BSteel and iron
- CSteel and lead
- DTin and iron
4.Which statement about a permanent bar magnet is incorrect?
Easy
- AThe S-pole attracts the N-pole of another magnet
- BThe S-pole repels the S-pole of another magnet
- CIt cannot repel a non-magnetic material
- DIt is made from a soft magnetic material (such as soft iron)
5.Which magnet has the strongest magnetic field?
Easy
- AA bar magnet with widely spaced field lines
- BA bar magnet with closely spaced field lines
- CA bar magnet with no field lines
- DA bar magnet with field lines that cross
6.What material can a temporary magnet be made from?
Easy
- APlastic
- BSoft iron
- CSteel
- DWood
7.Which compass correctly shows the direction of the magnetic field due to a bar magnet?
Easy
- AA compass with its north pole pointing towards the magnet's south pole
- BA compass with its north pole pointing towards the magnet's north pole
- CA compass with its south pole pointing towards the magnet's south pole
- DA compass with its needle aligned perpendicular to the magnet
8.Which of the following statements about a permanent bar magnet is true?
Medium
- AThe north pole of a permanent bar magnet will repel the north pole of another magnet.
- BA permanent bar magnet must be made from a soft magnetic material.
- CA permanent bar magnet can repel a magnetic material.
- DThe field lines of a permanent bar magnet cross each other where the field is strongest.

Revision notes

## Big idea: magnetic fields and material applications - **Key concept: Systems.** A magnetic field describes the force effects around a magnet. Field lines point from north to south outside a magnet; induced magnetism depends on the material. - **Related concepts: Models and evidence.** Use a scientific explanation to make predictions, then test it against observations. - **Global context: Scientific and technical innovation.** Magnetic materials are used in compasses, motors and electromagnets. ## Magnetism - Magnets have two **poles**: **north** and **south**. - Magnetic forces are **strongest at the poles**. - **Like poles repel** (N–N or S–S). - **Opposite poles attract** (N–S). - Attraction/repulsion between magnetic poles is a **non-contact force**. ## Magnetic Materials - Only a few metals are magnetic: **iron**, **cobalt**, **nickel**. - **Steel** (an alloy containing iron) is also magnetic. - Magnetic materials are **attracted** to both poles of a magnet. - Non-magnetic materials (e.g., aluminium, plastic) are **not affected** by a magnet. - A material is a magnet if it **repels** a known magnet; it is magnetic if it **attracts**; non-magnetic if neither. ## Permanent Magnets - Made from **hard magnetic materials** such as **steel**. - Produces its **own magnetic field**. - **Does not lose** its magnetism easily. - Used in: compasses, school lab magnets, toys, fridge magnets. ## Induced (Temporary) Magnets - Made from **soft magnetic materials** such as **soft iron**. - Becomes magnetised only when placed in a magnetic field. - The end closest to the magnet gains the **opposite pole**. - **Loses magnetism quickly** when removed from the field. - Used in: electromagnets, transformers. ## Magnetic Fields - A **magnetic field** is a region where a magnetic pole experiences a force. - Field lines go from **north pole to south pole**. - Arrows show direction of force on a north pole. - Field is **strongest at the poles** (lines are closer together). - Field **weakens with distance** (lines spread apart). ## Plotting Magnetic Fields - **Iron filings method**: Place paper over magnet, sprinkle filings, tap gently to reveal field pattern. - **Plotting compass method**: Place compass near magnet, mark needle ends, move compass step by step to trace field lines. - Compass needle points from north to south (north arrow points to south pole of magnet). ## Uses of Electromagnets - **MRI scanners** in hospitals use powerful electromagnets for imaging. - **Speakers and earphones** use electromagnets to produce sound. - **Recycling**: Electromagnets separate steel from other scrap. - **Mag-Lev trains** use repulsion between electromagnets to hover and reduce friction. ## Think like a scientist - Map the direction of a bar magnet's field using a small plotting compass at different positions. - **Comparison:** the compass position around the magnet. **Outcome:** the compass direction. - **Control:** keep the magnet position and orientation constant. Explain why this makes the comparison fairer. - **Evidence:** Use a consistent method, repeated observations where appropriate and a table with labelled quantities and units. Keep unexpected results and investigate their cause. - **Safety:** Practical activities need teacher supervision and an appropriate risk assessment. Use the provided data or simulation where the investigation specifies it. - **Inquiry task:** State a testable question, predict the outcome using the science, then explain how your observations would support or challenge the prediction. ## Evaluate the science - Magnetic materials are used in compasses, motors and electromagnets. - Field lines are a model rather than physical threads; nearby magnetic materials and fields can distort the observations. - **Evaluation task:** Link your conclusion to evidence, identify a limitation and suggest a specific improvement. Distinguish a measured result from an explanation of its cause.

Magnetic Poles and Interactions: Identify magnetic poles and predict attraction or repulsion between magnets.
Magnetic Materials and Induced Magnetism: Distinguish between magnetic and non-magnetic materials, and explain induced magnetism.
Magnetic Fields and Field Lines: Describe magnetic fields using field lines, including direction and strength.
Plotting Magnetic Fields: **Iron filings method**: Place paper over magnet, sprinkle filings, tap gently to reveal field pattern.
Uses of Magnets and Electromagnets: Give examples of uses of permanent magnets and electromagnets.
Designing scientific inquiries: Plan a fair comparison: Map the direction of a bar magnet's field using a small plotting compass at different positions.
Evaluating evidence and impacts: Magnetic materials are used in compasses, motors and electromagnets. Field lines are a model rather than physical threads; nearby magnetic materials and fields can distort the observations.
Magnetism: Magnets have two **poles**: **north** and **south**.
Magnetic Materials: Only a few metals are magnetic: **iron**, **cobalt**, **nickel**.
Permanent Magnets: Made from **hard magnetic materials** such as **steel**.
Induced (Temporary) Magnets: Made from **soft magnetic materials** such as **soft iron**.
Magnetic Fields: A **magnetic field** is a region where a magnetic pole experiences a force.
Uses of Electromagnets: **MRI scanners** in hospitals use powerful electromagnets for imaging.
poles: Magnets have two **poles**: **north** and **south**.
north: Magnets have two **poles**: **north** and **south**.
south: Magnets have two **poles**: **north** and **south**.

Flashcards

Which of the following lists of metals contains only metals that are non-ferrous?

Aluminium, brass, copper Non-ferrous metals contain no iron. Aluminium, brass, and copper are all non-ferrous. Iron, steel, cobalt, and nickel are ferrous (contain iron).

Which metal is suitable for use as a permanent magnet?

Steel Steel is a hard magnetic material that retains magnetism, making it suitable for permanent magnets. Soft iron loses magnetism quickly and is used for temporary magnets. Copper and aluminium are non-magnetic.

Which of the following lists contains only ferrous metals?

Steel and iron Ferrous metals contain iron. Steel is an alloy of iron, so both steel and iron are ferrous. Aluminium, lead, and tin are non-ferrous.

Which statement about a permanent bar magnet is incorrect?

It is made from a soft magnetic material (such as soft iron) Permanent magnets are made from hard magnetic materials like steel, not soft iron. Soft iron is used for temporary magnets because it loses magnetism quickly.

Which magnet has the strongest magnetic field?

A bar magnet with closely spaced field lines The strength of a magnetic field is indicated by the spacing of field lines: closer lines mean a stronger field. Field lines never cross.

What material can a temporary magnet be made from?

Soft iron Soft iron is easily magnetised but loses its magnetism quickly, making it ideal for temporary magnets. Steel retains magnetism (permanent). Plastic and wood are non-magnetic.

Which compass correctly shows the direction of the magnetic field due to a bar magnet?

A compass with its north pole pointing towards the magnet's south pole The north pole of a compass needle points towards the south pole of a magnet (opposite poles attract). Field lines go from north to south outside the magnet.

Which of the following statements about a permanent bar magnet is true?

The north pole of a permanent bar magnet will repel the north pole of another magnet. Like poles repel, so north-north repulsion is true. Permanent magnets are made from hard materials like steel. A magnet attracts magnetic materials; repulsion only occurs between like poles of magnets. Field lines never cross.

A student lines up some permanent magnets with soft iron nails in between. What would the magnetic poles of locations X and Y be? (Assume the north pole of a magnet is on the left and south on the right, with nails between magnets.)

X: south, Y: north Induced magnetism in soft iron creates opposite poles to the adjacent magnet pole. If the left magnet's N is near X, X becomes S. If the right magnet's S is near Y, Y becomes N.

Which of the following statements describes something a permanent magnet can do?

It will attract ferrous materials. A permanent magnet attracts ferrous (iron-containing) materials. It does not repel non-magnetic or non-ferrous materials (they are not affected). Magnets always have two poles.

Which test could be used to find which end of a magnet is the south pole?

Putting it near a compass needle and seeing whether the needle points away from the pole The north pole of a compass needle points towards the south pole of a magnet. If the needle points away, that end is the south pole (since the compass north is attracted to magnetic south).

A student has two different materials. Material 1 magnetises easily and loses its magnetism as soon as it is removed from a magnetic field. Material 2 is difficult to magnetise but retains its magnetism for a long time. Which row shows the most suitable use for these materials?

Material 1: core of an electromagnet, Material 2: bar magnet Material 1 is soft iron (temporary), ideal for electromagnet cores. Material 2 is steel (hard), ideal for permanent bar magnets.

A student sprinkles iron filings on a sheet of paper placed over a bar magnet and taps the paper gently. Which statement about the pattern formed by the iron filings is correct?

The filings cluster at the poles and form lines that curve from north to south. Iron filings align with the magnetic field lines, which are closest together at the poles (strongest field) and curve from the north pole to the south pole.

A student has a bar magnet and a metal bar. She brings the north pole of the magnet near one end of the metal bar. The metal bar is attracted to the magnet. She then brings the south pole of the magnet near the same end of the metal bar. What will happen?

The metal bar will be attracted. A magnetic material (like iron, steel, nickel, cobalt) is attracted to both poles of a magnet. Since the metal bar was attracted to the north pole, it is a magnetic material and will also be attracted to the south pole.

Two bar magnets are placed with their north poles facing each other, 5 cm apart. Which diagram best represents the magnetic field pattern between them?

Field lines spreading out from each north pole and curving away, with a neutral point in the middle. Like poles repel, so the field lines from each north pole push away from each other, creating a neutral point where the fields cancel. Field lines do not cross and always go from north to south, so they curve away from the region between the north poles.

Which of the following is a non-magnetic metal?

Copper The magnetic metals are iron, cobalt, nickel, and steel (an alloy of iron). Copper is not magnetic.

How would you design the inquiry for magnetic fields and material applications?

Map the direction of a bar magnet's field using a small plotting compass at different positions. Compare the compass position around the magnet; record the compass direction; keep the magnet position and orientation constant.

What limitation matters when applying magnetic fields and material applications?

Field lines are a model rather than physical threads; nearby magnetic materials and fields can distort the observations.
