What is a light microscope?

A **light microscope** uses visible light and lenses to **magnify** tiny objects.
It allows us to see details of **cells** and other small structures.
It is a key tool in biology for studying specimens too small for the naked eye.

Main parts of a light microscope

**Eyepiece lens** – the lens you look through at the top.
**Objective lenses** – magnify the object; usually several on a rotating nosepiece.
**Stage** – flat platform where the slide is placed; has **clips** to hold it.
**Focus adjuster** – moves the stage up/down; has **coarse** and **fine** adjustments.
**Mirror or light source** – shines light through the object to improve visibility.

How to focus the microscope

Start with the **lowest-power objective lens**.
Use the **coarse adjustment** to bring the object roughly into focus.
Then use the **fine adjustment** to sharpen the image for clear detail.
Always handle adjustments gently to avoid damaging the slide or lens.

Preparing a slide (onion cells)

Cut an onion and peel off a thin layer of **epidermis**.
Place the thin layer onto a clean **glass slide**.
Add a drop of **iodine** to stain the cells and make them visible.
Gently place a **coverslip** over the specimen to protect it.
Secure the slide on the **stage** using the **stage clips**.

Key facts

Light microscopes magnify objects so we can see **cells** and their structures.
The **objective lens** is not the one you look through – that is the eyepiece.
The **mirror** reflects light upward through the specimen to illuminate it.
Always use **clips** to hold the slide firmly on the stage.

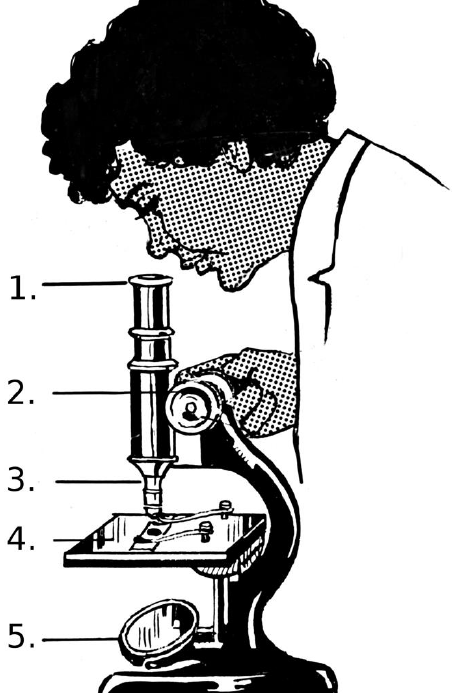

Diagram of a light microscope showing main parts.

Steps to prepare an onion cell slide.

Slides

Step through every slide for this topic — plus flashcards and revision notes — with a free account.

Practice questions

Free preview — 8 of 40 questions. Sign up to see them all.

1.What is the primary use of a light microscope?
Easy
- ATo magnify objects too small to be seen with the naked eye
- BTo measure the temperature of objects
- CTo weigh small objects
- DTo separate mixtures
2.Which part of a light microscope is the lens that you look through?
Easy
- AEyepiece lens
- BObjective lens
- CFocus adjuster
- DMirror
3.What is the function of the stage on a light microscope?
Easy
- ATo hold the slide in place
- BTo magnify the object
- CTo adjust the focus
- DTo provide light
4.Why is iodine added when preparing an onion cell slide?
Medium
- ATo stain the cells so they are easier to see
- BTo keep the cells alive
- CTo clean the slide
- DTo prevent the onion from drying out
5.What is the purpose of the fine focus adjustment on a light microscope?
Medium
- ATo sharpen the focus after using the coarse adjustment
- BTo change the magnification
- CTo move the stage up and down quickly
- DTo adjust the brightness of the light
6.What is the correct order when focusing a specimen under a light microscope?
Medium
- AUse coarse adjustment first, then fine adjustment
- BUse fine adjustment first, then coarse adjustment
- CUse both adjustments simultaneously
- DOnly use the coarse adjustment
7.A student views an onion cell using the 10x eyepiece and a 40x objective. What is the total magnification?
Hard
- A400x
- B50x
- C40x
- D10x
8.Which of the following is NOT a part of a light microscope?
Hard
- AElectron gun
- BEyepiece lens
- CStage
- DObjective lens

Revision notes

## Light Microscopes - **Purpose**: A light microscope uses visible light and lenses to magnify tiny objects (e.g., cells) that are too small to see with the naked eye. ### Key Parts: - **Eyepiece lens**: The lens you look through at the top. - **Objective lenses**: Magnify the object; usually multiple lenses on a rotating nosepiece. - **Stage**: Flat platform where slides are placed; clips hold slides in place. - **Mirror/Light source**: Shines light through the object to make details visible. - **Focus adjuster**: Moves stage up/down. Coarse adjustment brings object into view; fine adjustment sharpens focus. ### Preparing a Slide (Onion Cells): 1. Cut an onion and peel a thin layer (epidermis). 2. Place the thin layer on a slide. 3. Add a drop of iodine to stain the cells. 4. Gently place a coverslip over the onion. 5. Place slide on stage and secure with clips. ### Using the Microscope: - Start with low-power objective lens. - Use coarse focus to bring object into view. - Switch to higher power if needed. - Use fine focus to sharpen the image.

Light microscope: A tool that uses visible light and lenses to magnify objects too small to be seen with the naked eye.
Eyepiece lens: The lens at the top of the microscope that you look through.
Objective lens: Lenses that magnify the object; usually multiple lenses on a rotating nosepiece.
Stage: The flat platform where slides are placed; clips hold slides in place.
Focus adjuster: Controls that move the stage up and down; includes coarse adjustment (brings object into view) and fine adjustment (sharpens focus).
Mirror/Light source: Shines light through the object being viewed to make details visible.
Slide: A thin piece of glass on which a specimen is placed for viewing.
Coverslip: A thin glass cover placed over a specimen on a slide.
Iodine: A stain used to make cells more visible under a microscope.

Flashcards

What is a light microscope?

A tool that uses visible light and lenses to magnify objects too small to be seen with the naked eye.

What are the typical parts of a light microscope?

Eyepiece lens, focus adjuster (coarse and fine), objective lens, stage, and mirror or light source.

What is the function of the eyepiece lens?

It is the lens you look through at the top of the microscope.

What is the function of the objective lens?

It magnifies the object. Different lenses can be selected for varying magnification.

What is the stage of a microscope?

The flat platform where slides are placed, often with clips to hold them in place.

What is the purpose of the mirror or light source?

It shines light through the object being viewed to make details easier to see.

What are the two types of focus adjusters?

Coarse and fine adjustment controls.

How should you use the focus adjusters?

Use the coarse adjustment first to bring the object into view, then use the fine adjustment to sharpen the focus.

How do you prepare a slide to view onion cells?

Cut an onion, peel a thin layer (epidermis), place it on a slide, add a drop of iodine, and gently place a coverslip over it.

Why is iodine added when preparing an onion cell slide?

To stain the cells and make them easier to see.

What holds the slide in place on the stage?

Stage clips.

True or false: Light microscopes are used to magnify objects.

True.

True or false: The objective lens is the lens we look through.

False. The eyepiece lens is the one we look through.

True or false: Clips are used to hold microscope slides onto the stage.

True.

True or false: The focus adjuster usually has coarse and fine adjustment.

True.

What is the rotating nosepiece used for?

To select different objective lenses for varying levels of magnification.

What is the purpose of the coverslip?

To protect the specimen and keep it flat on the slide.

What is the function of the coarse focus adjuster?

To move the stage up and down to bring the object into approximate focus.

What is the function of the fine focus adjuster?

To sharpen the focus after using the coarse adjustment for a clear and detailed view.

What type of light do light microscopes use?

Visible light.
