Lesson notes

Introduction to Thermal Energy Transfer

Thermal energy is transferred from **hotter objects** to **colder objects**.
There are three ways thermal energy can be transferred: **conduction**, **convection**, and **radiation**.

Conduction

Conduction occurs primarily in **solids**.

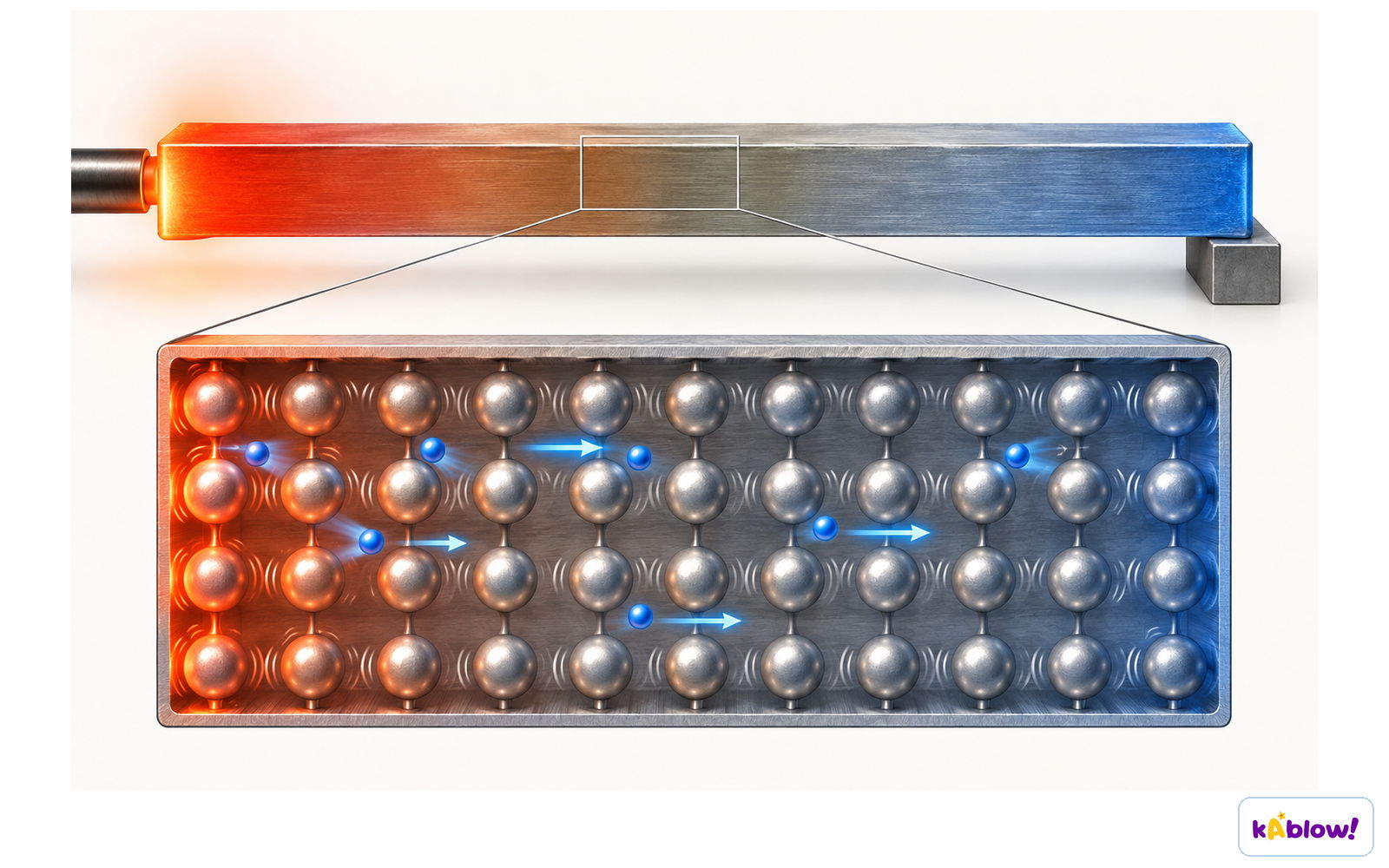

As particles in a solid are heated, they **vibrate more** and transfer vibrations through collisions.
Materials that conduct heat well are called **conductors** (e.g., metals).
Materials that do not conduct heat well are called **insulators** (e.g., plastics, gases).
Gases are good insulators because their particles are **far apart**.
Conduction is **not possible** through a vacuum because there are no particles.

Convection

Convection happens in **liquids** and **gases**.

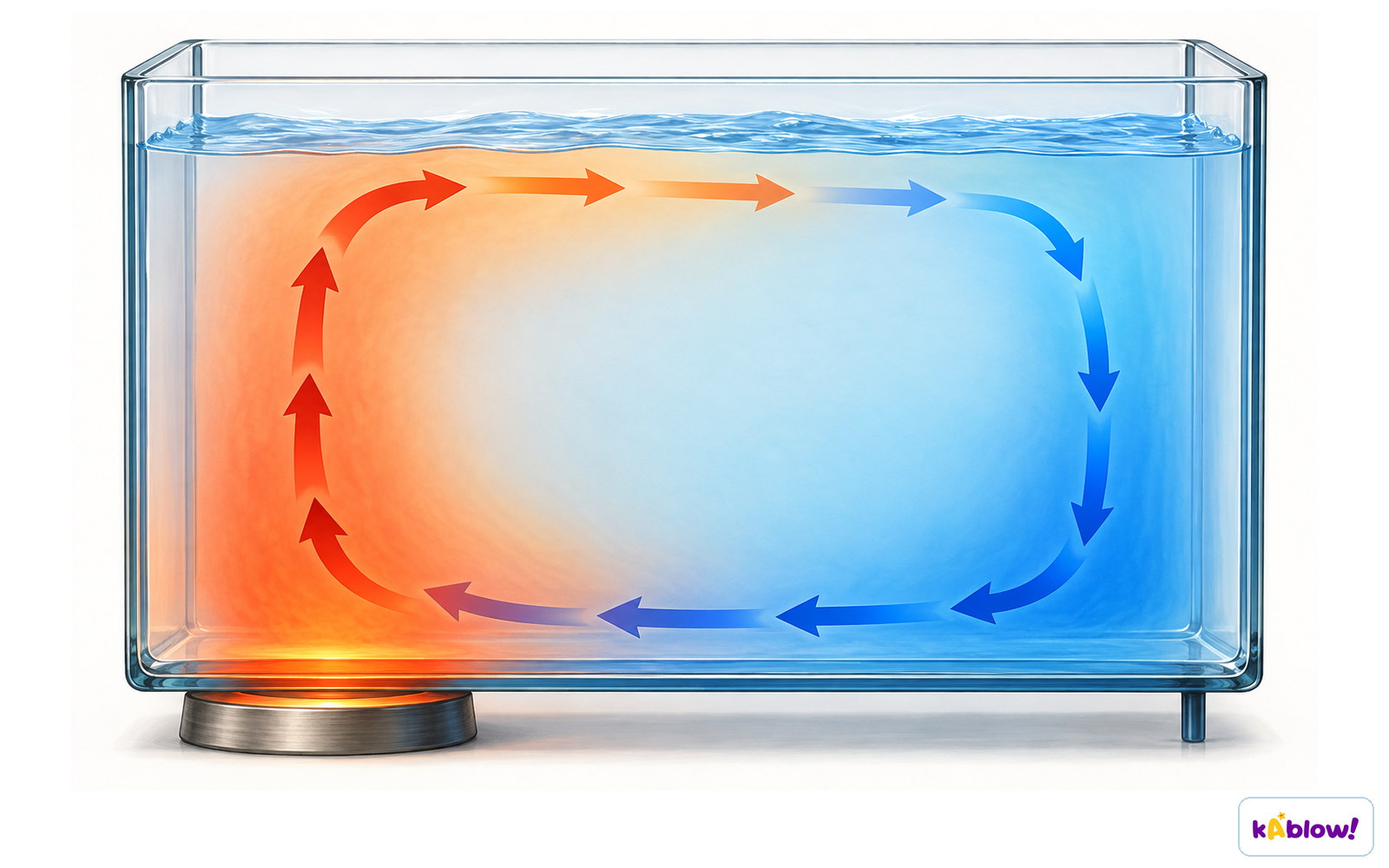

Heated particles move faster, become **less dense**, and **rise**.
Cooler particles are **more dense** and **sink**, creating a **convection current**.
Example: In a pan on a stove, water at the bottom heats up, rises, cools at the top, and sinks.

Radiation

All objects emit **infrared radiation** (thermal radiation).
Infrared radiation is an **electromagnetic wave** and can travel through a **vacuum**.
This is how thermal energy reaches Earth from the Sun.

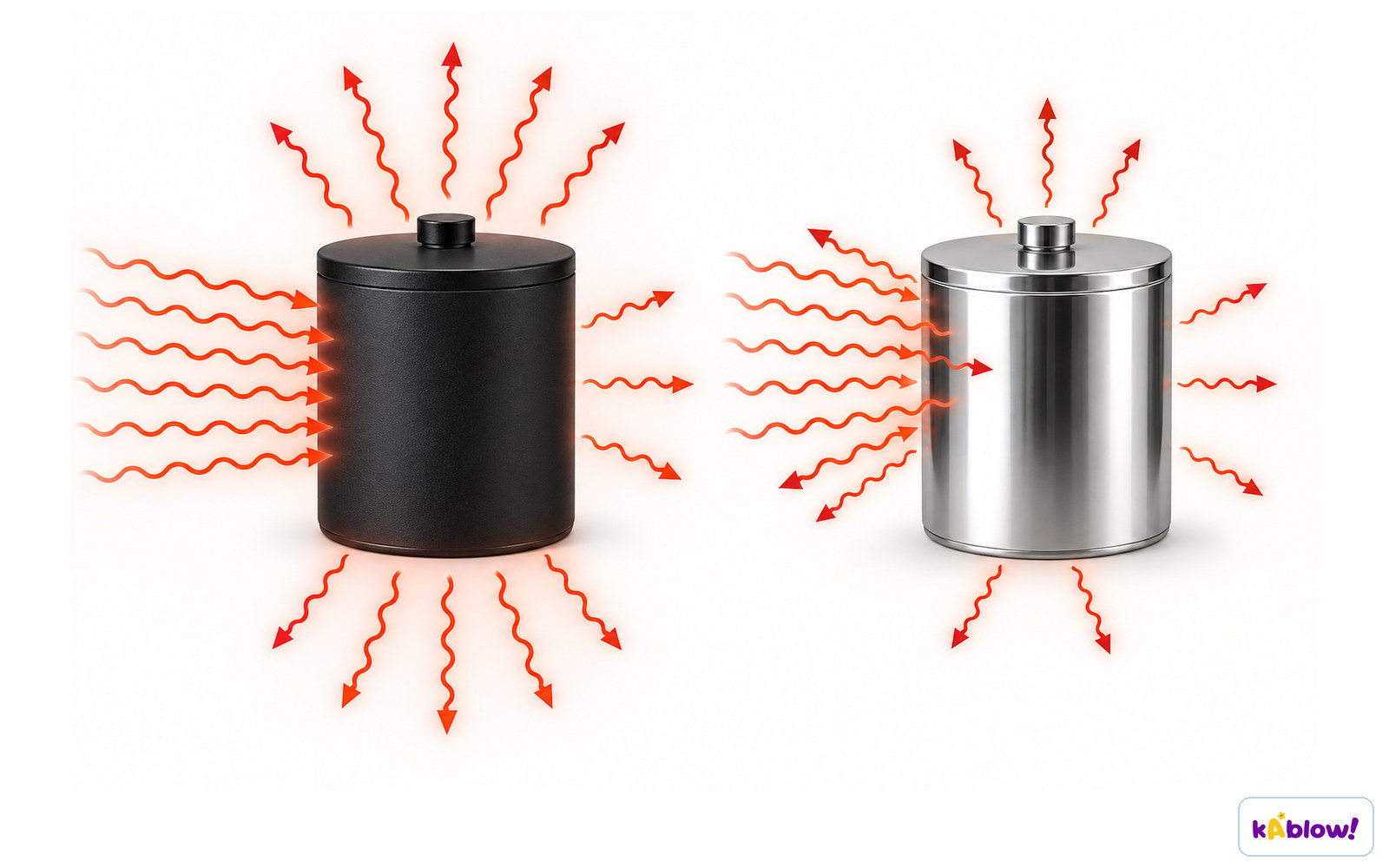

**Matt black** surfaces absorb the most infrared radiation.
**Shiny silver** surfaces reflect infrared radiation.

Particle arrangement in solids, liquids, and gases. Solids have closely packed vibrating particles (conduction), liquids and gases have particles that can move (convection).

Slides

Step through every slide for this topic — plus flashcards and revision notes — with a free account.

Practice questions

Free preview — 8 of 40 questions. Sign up to see them all.

1.Which of the following is NOT a method of thermal energy transfer?
Easy
- AConduction
- BConvection
- CRadiation
- DRefraction
2.Thermal energy is transferred from hotter objects to colder objects.
Easy
- ATrue
- BFalse
- COnly in solids
- DOnly in liquids
3.Which of the following is the best conductor of thermal energy?
Easy
- APlastic
- BAir
- CMetal
- DWood
4.In which state of matter does conduction primarily occur?
Easy
- ASolids
- BLiquids
- CGases
- DAll states equally
5.Which type of thermal energy transfer can occur through a vacuum?
Easy
- AConduction
- BConvection
- CRadiation
- DBoth conduction and convection
6.Why are gases good insulators?
Medium
- ABecause their particles are far apart
- BBecause they are light
- CBecause they are transparent
- DBecause they have no particles
7.In a convection current, what happens to the heated liquid or gas?
Medium
- AIt becomes denser and sinks
- BIt becomes less dense and rises
- CIt remains at the same density
- DIt turns into a solid
8.Which colour surface absorbs the most infrared radiation?
Medium
- AShiny silver
- BMatt white
- CMatt black
- DShiny black

More questions

9.What is a vacuum?
Medium
- AA region with no matter
- BA region filled with air
- CA region with only liquids
- DA region with high pressure
10.Which type of thermal energy transfer is responsible for the Earth being heated by the Sun?
Medium
- AConduction
- BConvection
- CRadiation
- DAll three equally
11.A student places a metal rod in a flame. After a few seconds, the end away from the flame becomes hot. Which process explains this?
Hard
- AConvection
- BRadiation
- CConduction
- DEvaporation
12.A pan of water is heated on a stove. Which statement correctly describes the movement of water?
Hard
- AHot water sinks and cold water rises
- BHot water rises and cold water sinks
- CAll water moves sideways
- DWater does not move
13.A metal pan with a plastic handle is used for cooking. Why is the handle made of plastic?
Medium
- APlastic is a good conductor of heat
- BPlastic is a good insulator of heat
- CPlastic is stronger than metal
- DPlastic is cheaper than metal
14.Which of the following is an example of convection?
Medium
- AA spoon in hot soup becomes warm
- BA radiator heats the air in a room
- CThe Sun warms the Earth
- DA metal bar is heated at one end
15.Which material is the best conductor of thermal energy?
Easy
- AWood
- BPlastic
- CMetal
- DAir
16.Which type of thermal energy transfer does not require particles?
Easy
- AConduction
- BConvection
- CRadiation
- DAll require particles
17.A vacuum flask keeps hot drinks hot. Which method of thermal energy transfer is prevented by the vacuum layer?
Hard
- AConduction and convection only
- BConduction and radiation only
- CConvection and radiation only
- DConduction, convection, and radiation
18.In a convection current, what happens to the density of a fluid when it is heated?
Hard
- AIt increases
- BIt decreases
- CIt stays the same
- DIt becomes zero
19.A student wraps two identical metal cans with different materials: one with shiny aluminium foil and one with matt black paper. Both cans contain the same amount of hot water at the same initial temperature. After 10 minutes, which can is likely to have cooled more?
Hard
- AThe can wrapped in shiny foil.
- BThe can wrapped in matt black paper.
- CBoth cans cool at the same rate.
- DNeither can cools because insulation prevents heat loss.
20.In an experiment to compare thermal conductivity of different materials, a student places rods of copper, iron, and glass into a beaker of hot water. Which rod would you expect to feel hottest at the end outside the water after the same time?
Hard
- ACopper
- BIron
- CGlass
- DAll feel the same temperature.
21.A student investigates how the colour of a surface affects the rate of cooling. They use two identical metal plates, one painted white and one painted black, both at the same initial temperature. They measure the temperature of each plate every minute. Which graph shape would you expect?
Hard
- ABoth plates cool at the same rate.
- BThe black plate cools faster initially, then both cool slowly.
- CThe white plate cools faster initially.
- DThe black plate cools slower than the white plate.
22.A student sets up an experiment to demonstrate convection in a liquid. They place a few crystals of potassium permanganate at the bottom of a beaker of cold water and then gently heat the beaker from below. What will the student observe?
Hard
- AThe crystals dissolve and spread evenly throughout the water.
- BColoured water rises from the bottom, then spreads out and sinks as it cools.
- CThe colour stays at the bottom because heating does not affect the water.
- DThe crystals sink to the bottom and remain there.
23.Which of the following is a method of thermal energy transfer?
Easy
- AConduction
- BEvaporation
- CCondensation
- DSublimation
24.Conduction occurs primarily in which state of matter?
Easy
- ASolids
- BLiquids
- CGases
- DPlasmas
25.Which of the following is an example of a good conductor of thermal energy?
Easy
- AMetal
- BPlastic
- CWood
- DAir
26.Which of the following is an example of a good insulator?
Easy
- APlastic
- BCopper
- CIron
- DAluminium
27.In which two states of matter does convection occur?
Medium
- ALiquids and gases
- BSolids and liquids
- CSolids and gases
- DOnly liquids
28.What happens to the density of a fluid when it is heated?
Medium
- AIt decreases
- BIt increases
- CIt stays the same
- DIt becomes zero
29.Which type of thermal energy transfer can travel through a vacuum?
Medium
- ARadiation
- BConduction
- CConvection
- DAll of them
30.All objects emit infrared radiation. True or false?
Hard
- ATrue
- BFalse, only hot objects emit infrared radiation
- CFalse, only cold objects emit infrared radiation
- DFalse, only objects in a vacuum emit infrared radiation
31.A student wraps two identical metal cans with different materials: one with shiny aluminium foil and one with matt black paper. Both cans contain the same amount of hot water. After 10 minutes, which can will have the lower temperature?
Hard
- AThe can wrapped in shiny aluminium foil
- BThe can wrapped in matt black paper
- CBoth will be the same temperature
- DIt depends on the room temperature
32.In an experiment to compare thermal conductivity of different materials, a student places rods of copper, iron, and glass into a beaker of hot water. Which rod will become hot at the far end first?
Hard
- ACopper
- BIron
- CGlass
- DAll at the same time
33.A student investigates how the colour of a surface affects the rate of cooling. They use two identical metal plates, one painted white and one painted black, both at the same initial temperature. Which plate cools faster?
Hard
- AThe white plate
- BThe black plate
- CBoth cool at the same rate
- DNeither cools because metal is a conductor
34.A student sets up an experiment to demonstrate convection in a liquid. They place a few crystals of potassium permanganate at the bottom of a beaker of cold water and gently heat the bottom of the beaker. What will they observe?
Medium
- AThe crystals dissolve and colour spreads evenly in all directions
- BColoured water rises from the bottom, then spreads and sinks as it cools
- CThe crystals remain at the bottom and do not move
- DThe water becomes uniformly coloured without any movement
35.A student sets up an experiment with a metal rod and a Bunsen burner. The rod is wrapped in three different materials: paper, cloth, and aluminium foil, each covering a section of the rod. The student heats one end of the rod and measures the temperature at the other end. Which material is expected to be the best insulator?
Hard
- APaper
- BCloth
- CAluminium foil
- DAll are equally good insulators
36.In an experiment to investigate convection, a student places a few crystals of potassium permanganate at the bottom of a beaker of water and heats the beaker gently. The purple colour is observed to rise in the centre and sink at the edges. Which statement best explains this observation?
Hard
- AThe water at the centre becomes denser and rises.
- BThe water at the centre becomes less dense and rises.
- CThe water at the edges becomes less dense and sinks.
- DThe crystals dissolve and spread evenly by diffusion.
37.A student investigates the rate of cooling of two identical metal plates, one painted matt black and the other painted shiny silver. Both plates are heated to the same initial temperature and allowed to cool in the same room. Which plate cools faster, and why?
Medium
- AThe matt black plate cools faster because it absorbs more infrared radiation from the surroundings.
- BThe shiny silver plate cools faster because it reflects more infrared radiation.
- CThe matt black plate cools faster because it emits more infrared radiation.
- DBoth plates cool at the same rate because they have the same initial temperature.
38.A vacuum flask is designed to keep hot drinks hot. Which method of thermal energy transfer is primarily prevented by the vacuum layer?
Medium
- AConduction and convection
- BConvection and radiation
- CRadiation only
- DConduction only
39.In an experiment to compare thermal conductivity, four rods of equal length and thickness (copper, iron, glass, and wood) are placed in a beaker of hot water. The temperature at the far end of each rod is measured after 5 minutes. Which rod is expected to show the smallest temperature increase?
Hard
- ACopper
- BIron
- CGlass
- DWood
40.Which of the following is NOT one of the three methods of thermal energy transfer?
Easy
- AConduction
- BConvection
- CRadiation
- DEvaporation

Revision notes

## Thermal Energy Transfer Thermal energy is transferred from hotter objects to colder objects. There are three ways: ### 1. Conduction - Occurs primarily in solids. - As particles are heated, they vibrate more, causing collisions that transfer vibrations along the material. - **Conductor**: material that conducts heat well (e.g., metals). - **Insulator**: material that does not conduct heat well (e.g., plastics, gases like air). Gases are good insulators because their particles are far apart. - Conduction is not possible through a vacuum (no particles). ### 2. Convection - Happens in liquids and gases. - Heated fluid becomes less dense and rises; cooler fluid is denser and sinks, creating a convection current. - Example: water in a pan on a stove – hot water at bottom rises, cool water at top sinks. ### 3. Radiation - All objects emit infrared radiation (thermal radiation). - Infrared is an electromagnetic wave, so it can travel through a vacuum (e.g., from Sun to Earth). - Matt black surfaces absorb the most infrared; shiny silver surfaces reflect it. **Key Points:** - Conduction: solids, vibration transfer. - Convection: liquids/gases, density changes. - Radiation: all objects, infrared waves, can travel through vacuum.

Conduction: Transfer of thermal energy through a solid by particle vibrations and collisions.
Convection: Transfer of thermal energy in fluids (liquids/gases) by movement of less dense, heated fluid rising and denser, cooler fluid sinking.
Radiation: Transfer of thermal energy as infrared electromagnetic waves, which can travel through a vacuum.
Conductor: Material that conducts heat well (e.g., metals).
Insulator: Material that does not conduct heat well (e.g., plastics, gases).
Vacuum: A space with no particles; conduction and convection cannot occur, but radiation can.
Infrared radiation: Electromagnetic waves emitted by all objects that transfer thermal energy; also called thermal radiation.

Flashcards

What are the three ways thermal energy can be transferred?

Conduction, convection, and radiation.

In which direction does thermal energy transfer?

From hotter objects to colder objects.

In which state of matter does conduction primarily occur?

Solids.

How does conduction transfer thermal energy in a solid?

As particles are heated, they vibrate more. These vibrations cause collisions between particles and the vibrations are transferred along the material.

What is a material called if it conducts heat well?

A conductor.

Give an example of a good conductor.

Metals.

What is a material called if it does not conduct heat well?

An insulator.

Give an example of a good insulator.

Plastics.

Why are gases good insulators?

Because their particles are far apart from each other.

Can conduction occur through a vacuum?

No, because there are no particles in a vacuum.

In which states of matter does convection happen?

Liquids and gases.

Describe how a convection current forms.

As a liquid or gas is heated, particles move faster and become more spread out, becoming less dense and rising. Colder, denser fluid sinks, creating a current.

What type of waves does radiation use to transfer thermal energy?

Infrared waves (infrared radiation).

Can radiation travel through a vacuum?

Yes, because infrared radiation is an electromagnetic wave.

How does thermal radiation reach Earth from the Sun?

It travels through the vacuum of space.

Which color surface absorbs the most infrared radiation?

Matt black surfaces.

Which color surface reflects infrared radiation?

Shiny silver surfaces.

True or false: Conduction happens mostly in solids.

True.

True or false: Metals are good conductors.

True.

True or false: Convection currents happen only in liquids.

False. Convection happens in both liquids and gases.

True or false: Thermal energy cannot be transferred through a vacuum.

False. Radiation can transfer thermal energy through a vacuum.

True or false: Only hot objects emit infrared radiation.

False. All objects emit infrared radiation.

True or false: Thermal energy is transferred from hotter objects to colder objects.

True.

What is a vacuum?

A space with no particles.

Unlock all 40 questions, flashcards & more

Create a free account to see every question, the slides, flashcards and revision notes for this topic.

Past papers

Past-paper practice for this topic is coming soon.

Coming soon
